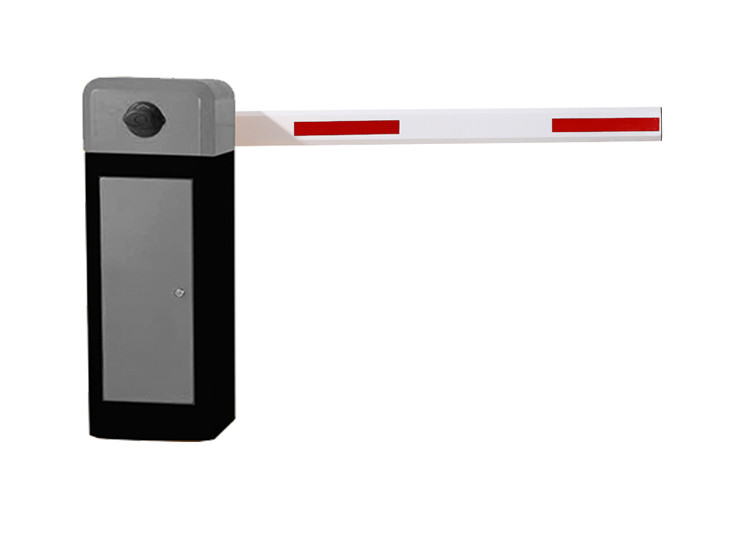

AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm
  • AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm
  • AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm
  • AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm

AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG102
Product Details
Surface Finish:
Powder Coating
Arm Length:
Max 6 Meters
Boom Type:
Straight, Folding And Fencing
Speed:
1s, 1.8s, 3s, 6s
Surface Color:
Grey/black
Opening Pattern:
Automatic
High Light:

AC Motor Automatic Barrier Gate

,

100% Duty Cycle Automatic Barrier Gate

,

6m Arm Entrance Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description

Product description



This serial barrier gate functions with stable performance and long life-span the specially-designed balance mechanism,

which makes boom start slowly, run quickly and stop slowly.



The specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick heat-radiation;

Intelligent over-heat protection system for driving mechanism, to control motor’s temperature and avoid damaging

easily during frequent usage.





Production Series



Model No. (BG) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-11 1 sec 3m straight boom
120-26 6 sec 5m 90 degree,Articulated boom
102-23 3 sec 3m 90 degree,Articulated boom
102-36 6 sec 5m 180 degree,Articulated boom
102-33 3 sec 3m 180 degree,Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom





Technical Specifications



Opening/closing time 1s, 1.8s, 3s, 6s
Supply Voltage 220V±10%, 110V±10%
Working Temperature -40℃~+75℃
Frquency 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 55kgs
Arm Speed 1s, 1.8s, 3s, 6s
Max boom length 6 meters



Components inside the cabinet



Sensor: The sensor on the bottom of motor. It is using for that if the boom falling down press any other obstacles, the boom will lifted up automatically.


Motor: AC power motor


Hall sensor: Connect to Limited switch port of control board, which limited the close/open position. Shock absorber: A gel is used to absorb the pressure of close/open boom


Spring: Using it to keep balance with boom. For example, the boom changed short opening plastic nuts
to make spring loosen a little. Otherwise the boom may can’t close totally.



Functions & Features



1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
12) RS485 Communication module (optional).



FAQ:

Q: What's the monthly production capacity for barrier gate?

A: 1000 units.

Q: What is the warranty for the machine?

A: 12 months.

Q: When will you make the delivery?

A: In general, Regular products: 2-7 days.

Q: How does your factory control the quality?

A: Quality controlling from the beginning to the ending.

Q: What is your MOQ?

A: Any quantity is acceptable.

Q: Payment term?

A: 30% deposit, 70% before delivery
