RFID Card QR Code Reader Pedestrian Swing Gate RGB Indicator
  • RFID Card QR Code Reader Pedestrian Swing Gate RGB Indicator
  • RFID Card QR Code Reader Pedestrian Swing Gate RGB Indicator

RFID Card QR Code Reader Pedestrian Swing Gate RGB Indicator

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02M
Product Details
LED Light:
RGB Color
Arm Material:
SS304/acrylic
Housing Material:
SUS304
MCBF:
5 Million Times
Power Supply:
AC100V~240V, DC24V
Arm Lenght:
Customized
High Light:

RFID Card Pedestrian Swing Gate

,

QR Code Reader Pedestrian Swing Gate

,

RGB Indicator Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

RGB Indicator Led Lights Equipped RFID Card And QR Code Reader Swing Gate



Product specifications



Structure parameters
Housing material 304 grade stainless steel
Thickness 1.5+1.0mm
mainboard Independent development mainboard
Arm material Acrylic/SUS304
Technical parameters
Size 200*200*1000mm
Lane width of single unit 800mm
Lane width of a pair 1600mm
Passing speed 30--35people/min
Open/close speed 0.2--0.6 sec
Weight 40KG
Turning angle 90 degree
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -25 to 70℃
Relative humidity 5% to 95%
Package Carton box inside (Wooden case optional)
Electronic parameters
Power supply 110-220V/AC, 24V/DC
Rated power 100W
Input signal Dry contact
Driving motor Brushless motor
Method of position Limiter



Description



The swing barrier provides a reliable and effective method to ensure that only authorized users are allowed to

access every area of the building. It meets the fire emergency requirements, all channels are opened for power

failure, and there is an independent fire alarm interface. The compact unit makes it easy to construct a

multi-channel setup, while the multiple colors allow you to perfectly match this turnstile to your hall or brand.



Application


SN-SB02M is typically used together with flap barrier or turnstile as manual lane for handicapped user or user
with big luggage.  SN-SB02M is for indoor usage and also outdoor usage(with shelter)

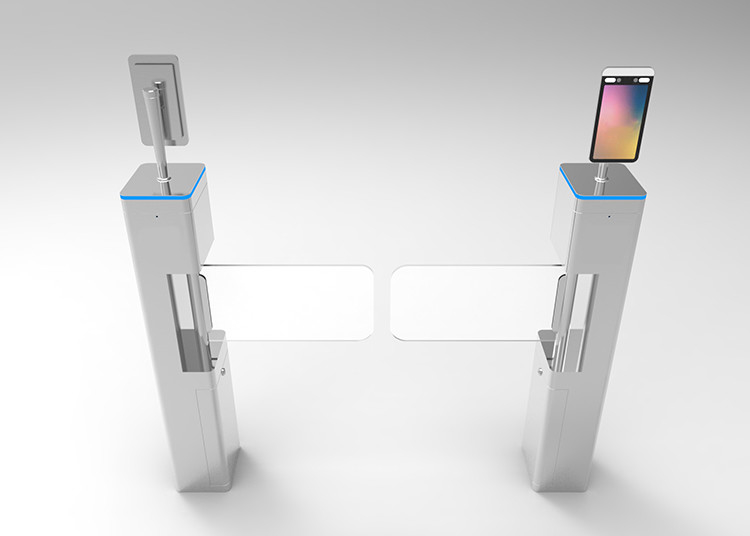

RFID Card QR Code Reader Pedestrian Swing Gate RGB Indicator 0



Main features

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.
