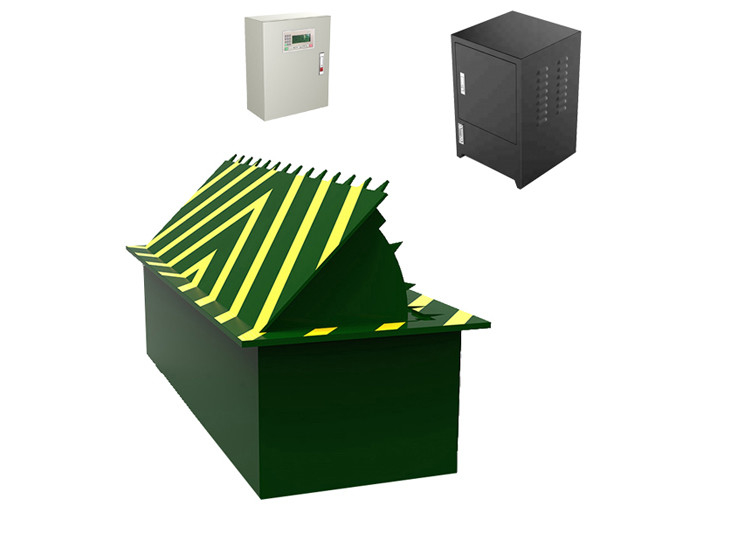

3.7KW A3 Steel Hydraulic Road Blocker LCD Display For Traffic
  • 3.7KW A3 Steel Hydraulic Road Blocker LCD Display For Traffic
  • 3.7KW A3 Steel Hydraulic Road Blocker LCD Display For Traffic
  • 3.7KW A3 Steel Hydraulic Road Blocker LCD Display For Traffic
  • 3.7KW A3 Steel Hydraulic Road Blocker LCD Display For Traffic

3.7KW A3 Steel Hydraulic Road Blocker LCD Display For Traffic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Product Details
Dimension-width:
1000mm
Dimension-height:
760mm
Oil Container:
60L
Control Voltage:
24V
Buffer Function:
Buffer Time :0.2s-0.5s
Protection Level:
IP 68
High Light:

A3 Steel Hydraulic Road Blocker

,

3.7KW Hydraulic Road Blocker

,

LCD Display Traffic Road Blocker

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
100pcs per month
Product Description

Physical Security A3 Steel Traffic Emergency Warning Lights Hydraulic Road Blocker



Product Application



The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government agencies,
embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places

where vehicle traffic is restricted.







PRODUCT SEPCIFICATIONS



Basic Information & Material
Rising time
1-3s (Adjustable)
Dropping time

 1-3s (Adjustable)

Dimension - Length

 3-6m (On request)

- Width
1000mm
- Height underground
760mm
Barrier height
500mm
Spikes
φ30mm*90mm (Optional)
Panel/Housing/Spikes
A3 Steel
Panel thickness
16/20/25mm
Surface color (Customizable)
Red/Green/Yellow/Black
Drainage system
Supported
Anti-rust treatment
2 layers spray paint
Reflective tape
White/Black, Yellow/Black
LED warning light
RGB, various dynamic mode





Standard Road blocker size: (mm)



L3000*W1000*H760,Rising height:500(Customized)



L3500*W1000*H760,Rising height:500(Customized)



L4000*W1000*H760,Rising height:500(Customized)



L4500*W1000*H760,Rising height:500(Customized)



L5000*W1000*H760,Rising height:500(Customized)



L5500*W1000*H760,Rising height:500(Customized)



L6000*W1000*H760,Rising height:500(Customized)



MAIN FEATURES



1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,

the language is customized).


2, power supply voltage: 380V (control voltage 24V).


3. System Power: 3.7KW



4, pressure capacity: Max. 120 tons of container trucks.


5, Anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)


6,protection level: IP68 (dustproof, waterproof)


7,open time: 3~6S (adjustable).


8, closing time: 3~6S (adjustable).


9,communication: RS485 ≤ 1200M.


10,the degree of elevation: 450mm-800mm.


11,working temperature: -45 ° C --- 75 ° C.


12, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.



13, Weight:2200kg-5500kg approx



MORE FUNCTIONS

  • Can be manually raised and fall down if power cut.
  • Gang-control interface
  • Reliable structure, heavy duty load, smooth action, low noise.
  • In rising and falling, reversible operation is available .
  • Hydraulic drive comes with hydraulic lock
  • PLC programming command control system
  • LCD display ,Both Chinese and English menu.
  • PLC built-in encryption system
  • Double dynamic double oil pump 2.3ML/time
  • Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
