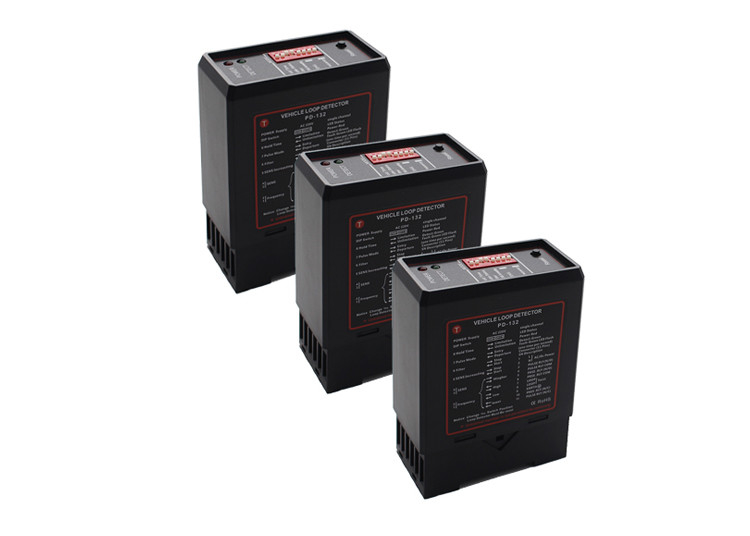

4 Increments 20ms Vehicle Loop Detector For Boom Barrier

Single Channel Vehicle Loop Sensorr Metal Detector For Boom Barries Parking Lot System


Advantages of vehicle loop detector model PD132


1. Compatible with parking management system.
2. Easy installation and operation.

3. Connects inductive loop

4. Application for Parking lot entrances Vehicle detection, Parking lot space information acquisition system, Electronic police traffic lights snap shot system, Traffic monitoring system etc.

5. Safe, beautiful, economic, comfortable.

Welcome OEM&ODM orders:

1) Logo printing on products;
2) Customized color box or carton;
3) Any your ideas on products we can help you to design and put it into production.

Technical Data

1. Supply voltage: 230V AC , 115V AC, 24V DC/AC, 12V DC/AC ( See the label on the detector)

2. Voltage tolerance AC: +10% / -15%

3. Voltage tolerance DC: ±15%

4. Power Consumption: 4.5VA Output relays: 240V/5A

5. Operating temperature: -20°C to +65°C

6. Storage temperature: -40°C to +85°C

7. Frequency range: 20 kHz to 170 kHz

8. Reaction time: 10ms Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes

9. Sensitivity: Adjustable in 4 increments

10. Loop inductance: Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH

11. Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter

12. Size of Housing: 78x40x108 mm (L x W x H)

Main Features:

1) Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing .

This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection ;

2) Selectable Pulse Time : This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds ;

3) Pulse Relay Selection : The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop ;

4) Sensitivity Boost : This feature sets the undetect level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles ;

5) Switch Selectable Sensibility : 4 sensitivity setting are available on the switches to allow flexibility in configuration ;

6) Switch Selectable Frequency : 4 frequency settings are available to prevent cross-talk between adjacent loops ;

7) Filter Option : This option is used to provide a delay between detection of the vehicle and switchiing of the output relay .

This relay is normally used to prevent false detection of small or fast moving objects ;

8) Permanent Presence Option : This feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods .

Technical parameters of Loop Detector

FAQ

1. Can we try the sample order first?

Yes, we can offer even 1 pc for testing.

2. What is lead time if we place an order?
If we have the order in stock, it would be 2 to 5 days.
If we don’t have the order in stock, it would be 7-10 days.

3. How to make payment?
T/T, Western Union, Credit card etc.

4. What is the delivery way?
DHL, UPS, Fedex, TNT ,EMS, DTDC etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport.
For mass order, shipping by sea or by air transport will be good choice.

5. What's the after-sale service?
We will provide the after-sale service by e-mail, skype, whatsapp, trade manager, telephone, QQ and wechat etc if you need any assistance from us after receiving the order.
