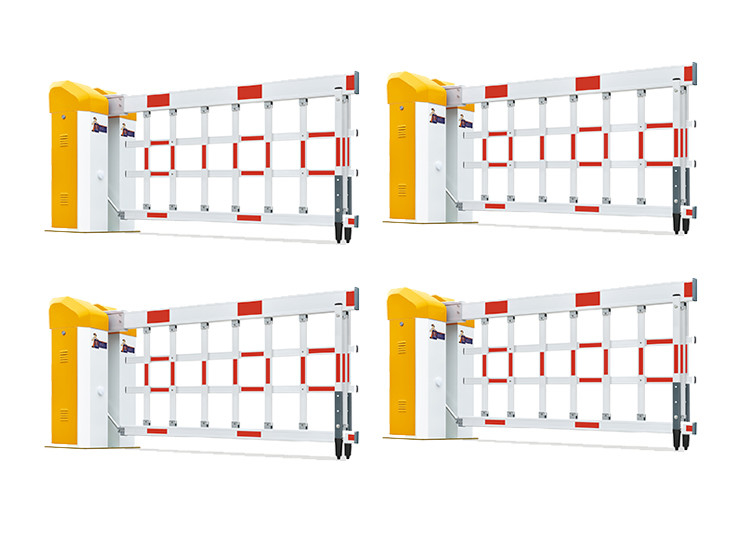

MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height
  • MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height
  • MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height
  • MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height

MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Product Details
Rated Power:
250W
Housing Color:
Yellow-black
OEM/ODM:
Optional
Box Weight:
About 110kg
Running Speed:
9s
Remote Control Distance:
≥30m
High Light:

AC Motor Airborne Entrance Gate

,

Body Height Airborne Entrance Gate

,

MTBF Fencing Auto Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

5 Million Times MTBF 100% Duty Cycle AC Motor Body Height Airborne Entrance Fencing Auto Gate



PRODUCT SPECIFICATIONS

ITEM
DATE
Input voltage
AC220V/AC110V, 50/60Hz
Rated power
250W
Motor working temperature
-30℃~80℃
Chassis weight
110kg
Protection level
IP 44
Boom height
1168mm
Remote control distance
not less than 30 meters
Boom length
1-6 meters
Lifting/Droping boom time
1-9 seconds



MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height 0

ABOUT SINOMATIC BOOM BARRIER



A boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots,

private entrances, industrial and public uses.


As a manufacturer, we have more than 15 years experiences on designing, producing and installing boom barriers.

The result is a superior boom barrier with best after-sales service.



Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.



With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation,

our boom barriers can bring perfect user experience.



APPLICATION OF AIRBORNE BARRIER GATE


Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.



MAIN FUNCTION AND FEATURES



1. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.



2. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.



3. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.



4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.



5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.



6. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.



7. Integrating electricity and mechanical control, flexible operation, convenient and reliable.



8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.



9. The system uses a standard electrical interface externally, which can be easily attached to other systems.



10. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.



AIRBORNE BARRIER GATE CASE REFERENCE



MTBF AC Motor Body Height Airborne Entrance Gate 1168mm height 1
