3.7KW Hydraulic Anti Terrorism Road Blockers A3 Steel For Vehicle
  • 3.7KW Hydraulic Anti Terrorism Road Blockers A3 Steel For Vehicle
  • 3.7KW Hydraulic Anti Terrorism Road Blockers A3 Steel For Vehicle
  • 3.7KW Hydraulic Anti Terrorism Road Blockers A3 Steel For Vehicle

3.7KW Hydraulic Anti Terrorism Road Blockers A3 Steel For Vehicle

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Product Details
Control Unit:
Hydraulic-electric
Dimension-width:
1000mm
Dimension-height:
760mm
Dimension-lenght:
2000mm To 6000mm
Control Voltage:
24V
Power Supply:
110V/220V/380V
High Light:

Hydraulic Anti Terrorism Road Blockers

,

3.7KW Anti Terrorism Road Blockers

,

A3 Steel Vehicle Road Blockers

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
100pcs per month
Product Description

High Security Heavy Duty hydraulic Anti-terrorism Road Blockers for Vehicle Access Control



PRODUCT INTRODUCTION



1) System control: hydraulic oil control


2) Load-bearing: Max.120 tons container truck


3) power supply: 380V(Control voltage 24V)


4) System power: 3.7KW


5) PLC controller: Original Chip


6) Rising speed: ≤3S(adjustable)


7) Dropping speed: 3S(adjustable)


8) Rising height: 500mm(options for 600/700mm)


9) Remote control distance: ≤100m


10) Control box distance: ≤100m


11) Working temperature: -35℃~75℃


12) Thickness: 16mm(options for20/25mm)


13) Material: A3 stainless steel, covered anti-corrosive primer


14) Protection class: IP68


15) Size: 3000(L)*1000(W)*760(H)mm(Length can be customized)


16) N.W.: 1.5 tons for 3 meters


17) Color: Black&Yellow(other colors optional)

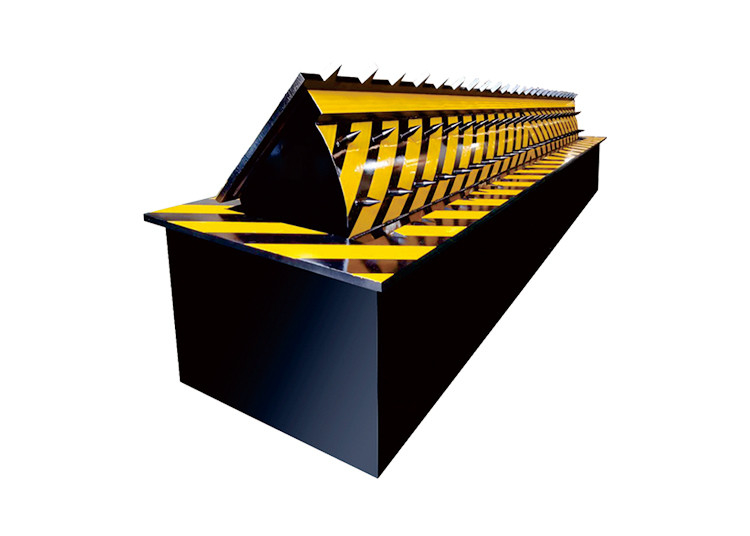

PRODUCT PHOTO

3.7KW Hydraulic Anti Terrorism Road Blockers A3 Steel For Vehicle 0



PRODUCT SEPCIFICATIONS



Basic Information & Material
Rising time
1-3s (Adjustable)
Dropping time

 1-3s (Adjustable)

Dimension - Length

 3-6m (On request)

- Width
1000mm
- Height underground
760mm
Barrier height
500mm
Spikes
φ30mm*90mm (Optional)
Panel/Housing/Spikes
A3 Steel
Panel thickness
16/20/25mm
Surface color (Customizable)
Red/Green/Yellow/Black
Drainage system
Supported
Anti-rust treatment
2 layers spray paint
Reflective tape
White/Black, Yellow/Black
LED warning light
RGB, various dynamic mode





Standard Road blocker size: (mm)



L3000*W1000*H760,Rising height:500(Customized)



L3500*W1000*H760,Rising height:500(Customized)



L4000*W1000*H760,Rising height:500(Customized)



L4500*W1000*H760,Rising height:500(Customized)



L5000*W1000*H760,Rising height:500(Customized)



L5500*W1000*H760,Rising height:500(Customized)



L6000*W1000*H760,Rising height:500(Customized)



MAIN FEATURES



1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down



2.Micro control technology makes bollards work stable and reliable,Easy integrate to other systems



3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control



4.Advanced mature Hydraulic pressure technologies



5.Remote control system realize wireless control up&down within 30 meters range



6.Customized for different users requests



7.Controller display : LED



8.Swiping card system: built-in card reader to control bollards up&down



9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card



10.Connected with Computer Management OR Charging Systems



MORE FUNCTIONS

  • Can be manually raised and fall down if power cut.
  • Gang-control interface
  • Reliable structure, heavy duty load, smooth action, low noise.
  • In rising and falling, reversible operation is available .
  • Hydraulic drive comes with hydraulic lock
  • PLC programming command control system
  • LCD display ,Both Chinese and English menu.
  • PLC built-in encryption system
  • Double dynamic double oil pump 2.3ML/time
  • Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose

PRODUCT APPLICATION

Application area: Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
