SS304 219mm Thickness Hydraulic Security Bollards anti ramming
  • SS304 219mm Thickness Hydraulic Security Bollards anti ramming
  • SS304 219mm Thickness Hydraulic Security Bollards anti ramming
  • SS304 219mm Thickness Hydraulic Security Bollards anti ramming

SS304 219mm Thickness Hydraulic Security Bollards anti ramming

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Bollard Material:
SS304(default)
Bollard Diameter:
219/273/324mm
Bollard Height:
600 To 1000mm
SS304 Thickness:
6/8/10/12/15/20
Flange Thickness:
10mm
Bollard Surface Treatment:
8k Mirror Surface
High Light:

SS304 Hydraulic Security Bollards

,

219mm Thickness Hydraulic Security Bollards

,

Anti Ramming Automatic Roadway Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

219 mm thickness Full Automatic Roadway security management hydraulic security bollards



Product description



This is a new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is an ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.



Our advantages:

High security anti-ramming automatic barriers features:


Different thickness of steel is available (default 6 mm)


The different color is available


Customized size is available


Steady and safe due to the OMRON PLC control system


Speedy rising time and durable quality with hydraulic pressure

Housing with durable and stainless Galvanization


Optimization of the frame structure, high anti-impact capability, high loading capability


High security and anti-collision ability


With a reflective band and a low energy consumption LED light at night



Automatic bollard Feature

High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence



PRODUCT PHOTO

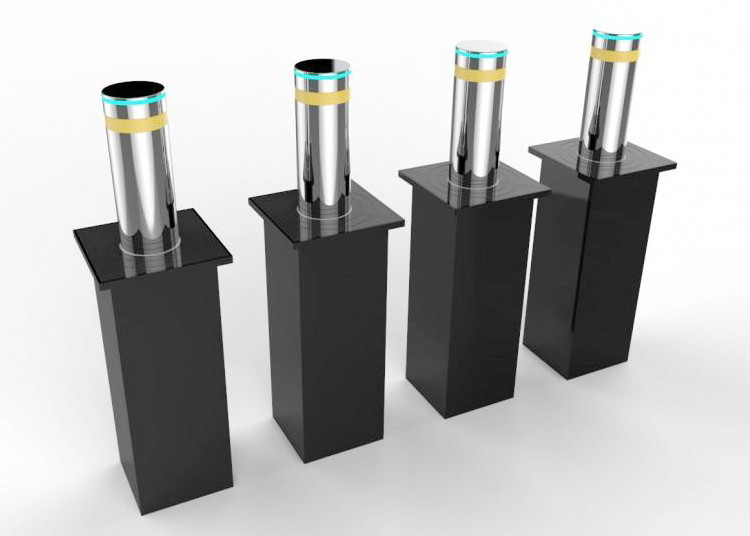

SS304 219mm Thickness Hydraulic Security Bollards anti ramming 0



Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.



Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.



Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.



Product specification



rising hydraulic bollards Material
Cylinder
304 Stainless steel
Flange
304 Stainless steel
Flange thickness
10mm
Pre-embedded section
Q235 Steel (A3, Dark grey Spray paint)
Actuator piston rod dia.
18mm
Hydraulic cylinder
304 Stainless steel
Rail
QPQ treatment
Rail dia.
20mm
Reflective tape
50mm(yellow)
LED warning light
RGB, various dynamic mode



rising hydraulic bollards Control Center
Control Center
PLC (With display)
Housing
Spray paint (Outdoor use)
Seft-testing program
Yes
Trial period setting
Yes
Warning light Auto ON/OFF
Yes
Emergency rising/dropping
Yes
Emergency dropping once power off
Yes
Remote control
100m
LED remote control
30m, 2.4GHz remote control
Wire switch
Optional





PRODUCT FUNCTIONS & FEATURES



1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting
