150mm Width IP45 Automatic Swing Arm Turnstile Gates
  • 150mm Width IP45 Automatic Swing Arm Turnstile Gates
  • 150mm Width IP45 Automatic Swing Arm Turnstile Gates
  • 150mm Width IP45 Automatic Swing Arm Turnstile Gates

150mm Width IP45 Automatic Swing Arm Turnstile Gates

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG150
Product Details
Operation Eenvironment:
Indoor/outdoor With Shelter
LED Indcator:
Yes
LED Color:
RGB
Housing Width:
150mm(default)
Housing Height:
1060mm
MCBF:
5,000,000 Cycles
High Light:

Automatic Swing Arm Turnstile Gates

,

IP45 Swing Arm Turnstile Gates

,

150mm Width Pedestrian Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

High Speed Sensitivity Anti-Rust And Anti-Corrosion Treatment Automatic Swing Arm Turnstile Gates



MAIN FEATURES



1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.



2. Smoothly Running, small noise, simple and reliable restructure.



3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice.



4. Control panel with counting function, LCD/LED display function (optional)



5. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedstrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedstrians with luggage going through.



6. Intelligent voice and sound prompts make the device more user-friendly and easier to use.



7. With auto malfunction inspection and alarm function, convenient for user maintenance and use.



8. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg).



9. Sound and light alarm function: including illegal break-in, trailing alarm.



10. Anti - impact function, the flap automatic locked without the open signal.



11. With automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.



12. Infrared sensor reset, infrared sensor anti-pinch function.



13. After power off, the access automatically open and automatically closed after power on.



14. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments.



15. Single-direction or Bi-direction control pedestrians access, infrared sensor access.



16. Available for remote control and management directly by computer.



PRODUCT DESCRIPTION


The high speed gate, SN-HSG150, the profile is stamped from the standard SS304 and conbined with aluminum alloy and cold-rolled steel,

it's beautiful and generous shape, rust proof, durable, resisting external damage, adapoting standard electrical interface can easily integrate the

bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same

time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements

to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.



The High Speed Gate is the intelligent access management produced by our company after several years R & D, this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.



Application



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.







PRODUCT SPECIFICTAIONS



Model
SN-HSG150
Case Material
SS304,MS, alumimum alloy
Barrier Arm Material
Transparent Acrylic
Production Process
CNC Laser Cutting
Size
1210*150*1060mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Servo Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
600mm(Customization acceptable)
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
30persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on
3S
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

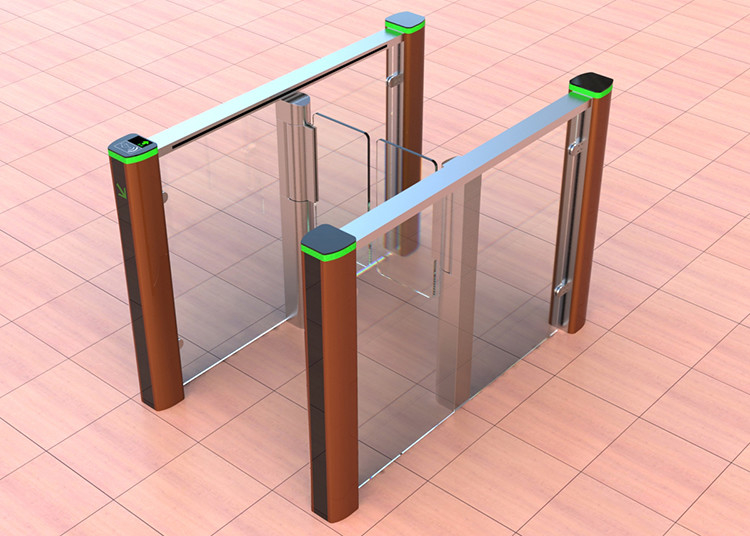

PRODUCT PHOTO

150mm Width IP45 Automatic Swing Arm Turnstile Gates 0



DIMENSION

150mm Width IP45 Automatic Swing Arm Turnstile Gates 1
