280 Cards SS304 219mm cylinder Drop Card Collector

  • 280 Cards SS304 219mm cylinder Drop Card Collector
  • 280 Cards SS304 219mm cylinder Drop Card Collector
  • 280 Cards SS304 219mm cylinder Drop Card Collector
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DBX100
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Card Bin Capacity Maximum 280 Cards Housing Diameter 219mm
Surface Treatment Wire-drawing Collection Bin Dimension 13.5 X 13.5 X 29 Cm
Capacity Can Contain Maximum 280 Cards Package Carton
High Light

219mm Cylinder Drop Card Collector

,

SS304 Drop Card Collector

,

280 Cards Access Control Gate
Leave a Message
Product Description

Maximum 280 cards capacity SS304 frame material drop card collector



FEATURE OF DROP BOX CARD COLLECTOR

  • Flexible card size. Can support maximum card width up to 10cm. DBX100 can take in entire card with card holder and pin clip.
  • Any brand access control reader can be installed inside the dropbox. Once reader verified a valid card, reader shall trigger dropbox to accept the card. Accepted card will fall into collection bin at bottom.
  • There is indication light to show operation status.
  • Top cover can be opened by key for maintenance purposes.
  • Bottom door can be opened by key to take out collection bin once it is full. Once collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared.
  • DBX100 also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.
  • Dropbox is suitable for indoor application only. It is NOT suitable to be installed outdoor or near sea side.



PRODUCT PHOTO

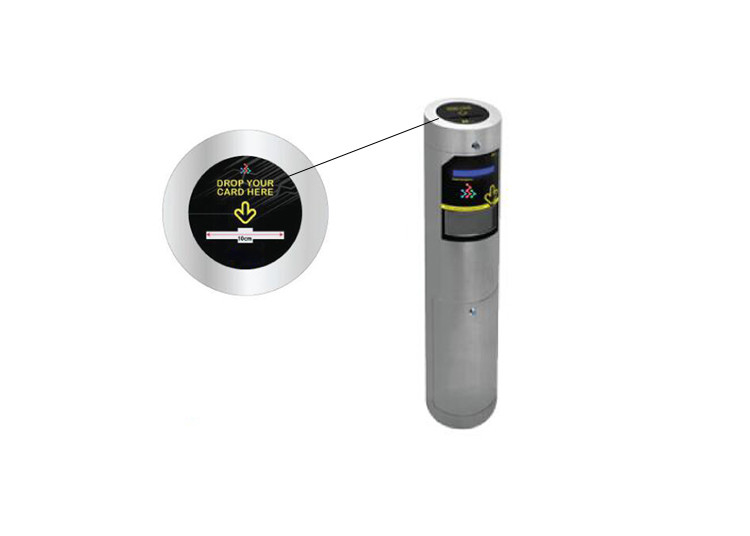

280 Cards SS304 219mm cylinder Drop Card Collector 0



Typical application usage



DBX100 can be used with visitor management software (VMS) to achieve auto-visitor check out function. Visitor
no longer need to go to the reception counter to return their visitor card. Visitor just needs to drop their visitor
card into DBX100, the card will automatically check out this visitor in VMS software record.


DBX100 also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity
card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity
card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next
visitor.



PRODUCT SPECIFICATION



Description Parameter
Brand SINOMATIC
Model SN-DBX100
Housing material SS304
Material thickness 1.8mm
Housing diameter 219mm cylinder
Surface treatment wire-drawing
Power supply AC230 power input
Built in DC24V power supply
Power consumption Idle : AC 0.04A, DC 0.01A
Operation : AC 0.28A , DC 4.71- 4.74A
Indicated light Blue : Power On
Green : Valid card
Red : Dropbox fully occupied
Collection bin dimension 13.5 x 13.5 x 29 cm
Can contain maximum 280 cards
Maximum card size

10 (W) x 9 (H) cm



CASE REFERENCE

280 Cards SS304 219mm cylinder Drop Card Collector 1
