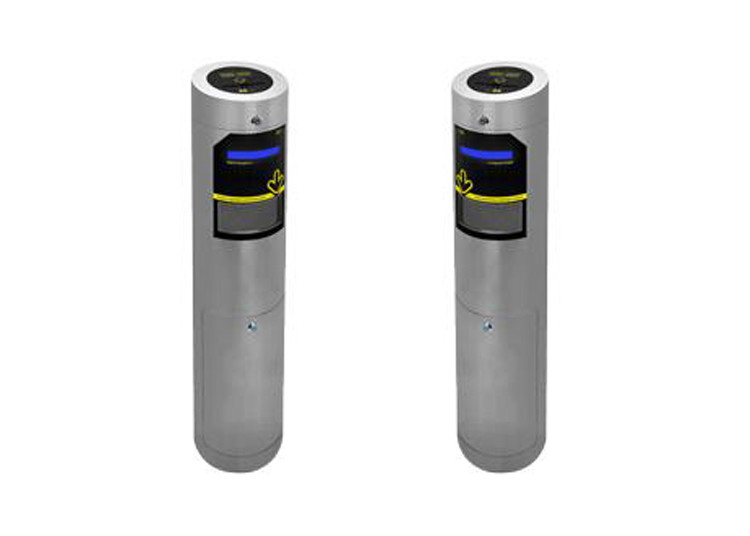

Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304
  • Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304
  • Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304
  • Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304

Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DBX100
Product Details
Power Supply:
AC100V To AC 260V
Housing Diameter:
219mm
Housing Material:
304 Stainless Steel
Power Consumption:
Idle : 24VDC, 0.01A Operation : 24VDC, 4.71- 4.74A
Collection Bin Dimension:
13.5 X 13.5 X 29 Cm
Capacity:
Can Contain Maximum 280 Cards
High Light:

219mm Cylinder Dropbox Card Collector

,

Pedestrian Management Dropbox Card Collector

,

SS304 Access Control Card Collector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

Big collection bin 304 stainless steel dropbox RFID card collector with led light indicator



Typical application usage



DBX100 can be used with visitor management software (VMS) to achieve auto-visitor check out function. Visitor
no longer need to go to the reception counter to return their visitor card. Visitor just needs to drop their visitor
card into DBX100, the card will automatically check out this visitor in VMS software record.


DBX100 also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity
card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity
card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next
visitor.



PRODUCT SPECIFICATION



Description Parameter
Brand SINOMATIC
Model SN-DBX100
Power supply AC230 power input
Built in DC24V power supply
Power consumption Idle : AC 0.04A, DC 0.01A
Operation : AC 0.28A , DC 4.71- 4.74A
Indicated light Blue : Power On
Green : Valid card
Red : Dropbox fully occupied
Collection bin dimension 13.5 x 13.5 x 29 cm
Can contain maximum 280 cards
Maximum card size

10 (W) x 9 (H) cm



Application:

Dropbox is suitable for indoor application only. It is NOT suitable to be installed outdoor or near sea side.





Features:

  • Flexible card size. Can support maximum card width up to 10cm. DBX100 can take in entire card with card holder and pin clip.

Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304 0

  • Any brand access control reader can be installed inside the dropbox. Once reader verified a valid card, reader shall trigger dropbox to accept the card. Accepted card will fall into collection bin at bottom.
  • There is indication light to show operation status.

Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304 1

  • Top cover can be opened by key for maintenance purposes.
  • Bottom door can be opened by key to take out collection bin once it is full. Once collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared.
  • DBX100 also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.

PRODUCT PHOTO

Pedestrian Management 219mm Cylinder Dropbox Card Collector SS304 2



Typical application usage



Dropbox can be used with visitor management software (VMS) to achieve auto-visitor check out function. Visitor no longer need to go to the reception counter to return their visitor card. Visitor just needs to drop their visitor card into dropbox, the card will automatically check out this visitor in VMS software record.


Dropbox also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.





Here download the datasheet



Dropbox Card Collector datasheet.pdf
