2s 80T Electromechanical Tyre Killers With 10mm Spikes

Electromechanical Tyre Killers with Spikes Security Vehicle Access Control systems

PRODUCT DESCRIPTION

Electromechanical tyre killer is one of the highest security vehicle access control systems in which a vehicle without permission cannot enter. Tyres of the unpermitted vehicle splits open immediately, therefore the vehicle moves only a few more meters and is stopped. Jaws of the tire killer move all together. Drive unit is placed to one end of the tire killer, it stands above the ground level and is a complete assembly with the body. In this way, both smooth transmission of motion and minimum effect of external factors are achieved.

SINOMATIC electromechanical tyre killers are controlled by a PLC. Open/close function can be achieved by every kind of card readers, biometric readers like fingerprint etc, radio control on/off switch or key switch etc. Besides, safety accessories like loop detectors, photocells, flashing lights or red/green light can be integrated to the control electronics very easily. Time delay arming of the tire killer can be adjusted between 0-60 seconds.

The tyre-killer is made of A3 steel and steel blade(Shape looks like speed bump). It adopts the mechanical and electrical integration remote control device,easily operated,safe and reliable.It is advanced equipment to intercept forbidden vehicles and terrorist vehicles.

When the interception is needed, press the Up button on the remote control,then steel blade will rise up immediately. If the vehicle force through, the tyres will be punctured and deflated.When steel blade can effectively prevent the wheel passing and forced to stop.

When the interception task is over,press the Down button, the blade will retract back to the casing and standby.

PRODUCT SPECIFICATIONS

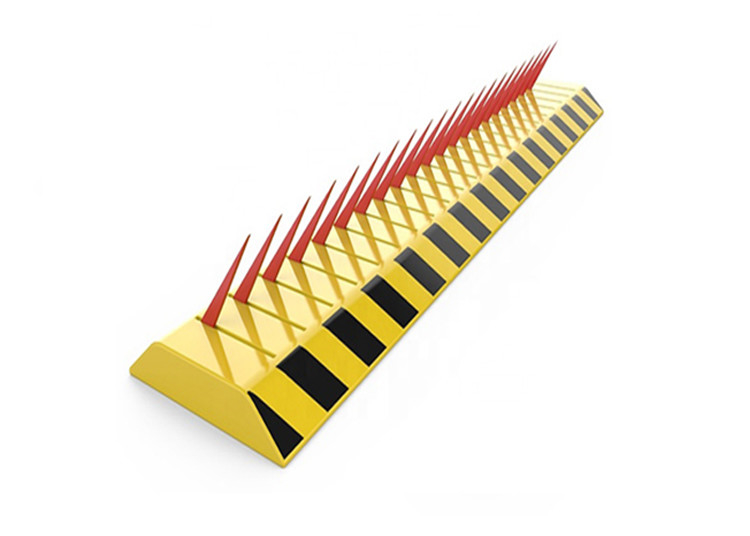

PRODUCT PHOTO

PRODUCT MAIN FEATURES

1. Quite and fast

2. Solid and endurable structure, the largest traffic capacity is up to 60t

3. The system is safe, reliable and stable

4. Perform exactly and operate steadily, making the barrier low noise

5. The working environment is -40° C to +70° C

6. Low trouble rate, high reliability, long life cycle,

7. Easy maintenance, and the rate is low

8. Can combine with other control equipment making the barrier auto control

9. In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth

Tyre killer system consists:

Tyre killer system consists of a main frame, electric transmission station and electric control box.

• Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
• The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
• Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.
