Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG130-DC |
Aluminum Alloy Arm Security Barriers And Gates DC Brushless Motor With Hall Limit
SHENZHEN SINOMATIC is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact us freely.
Technical data
| Working Temperature | -35℃~+85℃ |
| Power Supply | DC24V |
| Open/close Speed | 2Sec to 6sec(adjustable) |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Rated Rotating Speed | 1400rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Protection Grade | IP44 |
| Max Boom Length | 6M |
Functions&Features
1.The operation speed can be adjusted(2s to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.
9. High-sensitivity arm auto reverse function (intensity can be adjusted).
10. Parking system interface.
Each barrier will include:
| 1 pcs Vehicle Barrier gate |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers, 1 pc push button |
| 1 pcs manual book |
PROTECTION OF BOOM ARM
| Anti-collision protects boom arm |
| It will protect the boom arm not to be damaged once boom arm was collided by a vehicle |
| Safety--- Anti-hit by pressure resistance bounce |
| While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable |

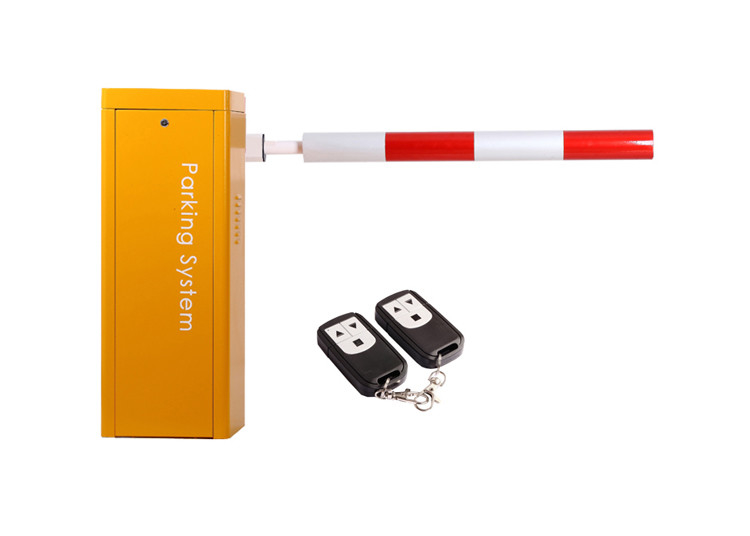

PRODUCT PHOTO
SPRING SELECTION FOR DIFFERENT TYPE OF ARM
| Arm type | Arm length |
Spring type |
Spec.(diameter*Length) |
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | (ø5.5x280) | ||
| 4.5M＞L≥3M | (ø4.5x280) | ||
| Fence Arm | 5M≥L≥4M | (ø6.5x280)+(ø6.5x280) | |
| 4M＞L≥3M | (ø5.5x280)+(ø4.5x280) |
Arm length speed comparison table
| Menu code | Number | Menu code name | Defaults | unit | Remarks |
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-04 | 1-20 | Open accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 2 | degree | step size is 1 |
| H00-07 | 1-30 | Open in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | Sec | step size is 100；0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | Corresponding PWM duty cycle 10%-50%, step size is 1 | |
| H00-11 | 0-2 | Self-check mode | 0 | 0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory | |
| H00-12 | 0-5 | Self-lock force adjustment(Invalid) | 3 | ||
| H00-13 | 1-20 | Motor deceleration time when paused | 5 | The larger the setting, the longer the pause time will take | |
| H00-14 | 0-1 | The default direction of operation after self-test | 0 | 0:Closing,1:opening | |
| H00-15 | 1-10 | Number of pole pairs(Invalid) | 4 | Only used to correctly display motor speed values | |
| H00-16 | 1-32 | RS485communication address | 1 | Up to 32 slaves can be connected | |
| H00-17 | 0-2 | RS485communication rate | 0 | 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again. | |
| H00-18 | 0-1 | If self-test after power is on | 1 | 0:no self-test after power on,1:self-test after power on | |
| H00-19 | 0-3 | Manual self-test adjustment | 2 | 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid | |
| H00-20 | 0-15 | Monitoring parameter setting index | 7 | 7,operation times(ms):0~9000 8,Cumulative operation times:0`99999999 9,automatically operation times :0~99999999 10,Collision times:0~99999999 11,Closing in place times:0~99999999 12,Power-on time (minutes):0~99999999 13,power-on times:0~99999999 14,Input port status:Binary display 15,Error code:0~7 |
|
| H00-21 | 0-3 | reset | 0 | 1:rest adjustment | |
| H00-22 | 0-1 | LED output mode | 0 | 0:Do not flash alternately during operation；1:Allow flashing |
