CE Barrier Gate 100ms 24GHz Car Radar Detector IP65
  • CE Barrier Gate 100ms 24GHz Car Radar Detector IP65
  • CE Barrier Gate 100ms 24GHz Car Radar Detector IP65
  • CE Barrier Gate 100ms 24GHz Car Radar Detector IP65

CE Barrier Gate 100ms 24GHz Car Radar Detector IP65

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE
Model Number TRD-201
Product Details
Supply Voltage Range:
DC 6V~18V
Keyword:
Radar Vehicle Detector
Operating Temperature:
-40℃~+85℃
Distance Adjustment Range:
2.0 M~6 M (8 Levels)
IP Grader:
IP65
Supply Current:
Less Than 90 MA/ 12V
High Light:

24GHz Car Radar Detector

,

100ms Car Radar Detector

,

IP65 Radar Vehicle Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$50~US$55
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
2000 pcs per month
Product Description

New arrival all weather work anti-crash access control barrier gate car radar detector



Radar Vehicle Detector  Brief Introduction



Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band.

The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing

on the target's reflected echoes to achieve fast target Detection.



Radar Vehicle Detector  Advantages



The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.



Radar Vehicle Detector Dimension

CE Barrier Gate 100ms 24GHz Car Radar Detector IP65 0



The radar detector installation dimensions are shown in Diagram



CE Barrier Gate 100ms 24GHz Car Radar Detector IP65 1



The schematic diagram of radar installation and connection is shown in Figure



Product Specification
Center Frequency
24GHz
Horizontal Beam Width
11°
Vertical Beam Width
43°
Distance Adjustment Range
2.0 m~6 m (8 levels)
Response Time
100ms
Vehicle Inspection Miss Rate
0.1%
Coverage Range
0 m~6 m
Pedestrian Detection Miss Rate
0.1%
Signal Output
switching value
False Detection Rate
0.05%



Main Features



CE Barrier Gate 100ms 24GHz Car Radar Detector IP65 2




Detection Accuracy


With millimeter wave working signal, radar detector has high working frequency, directional accuracy and strong anti-interference and so on excellent performance. The detection rate of different types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. The detection rate of pedestrians is higher than 99.9%.

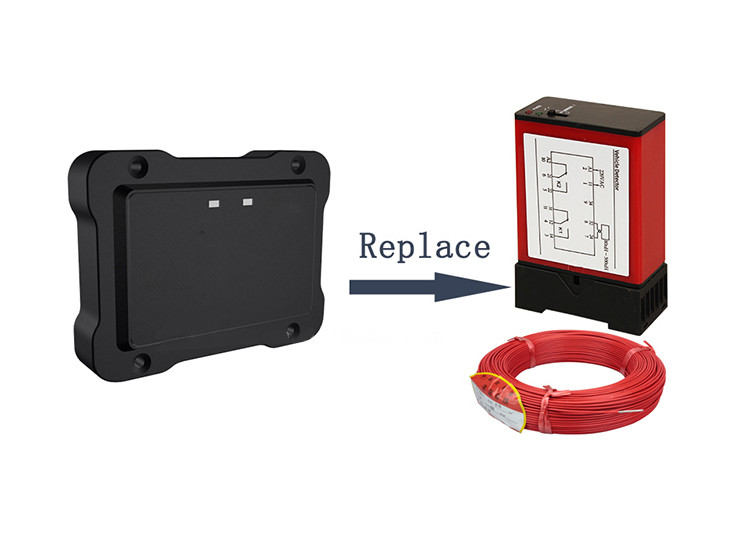

Low Cost to Install and Maintain(no need to damage the road surface)
The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It not only overcomes the problems of high construction cost and maintenance difficulties for the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves the problem of barrier rod control.


All-weather Work
The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering the radar and causing radar damage.



Convenient Power Supply
The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control panel, without the need for a separate power supply device.
