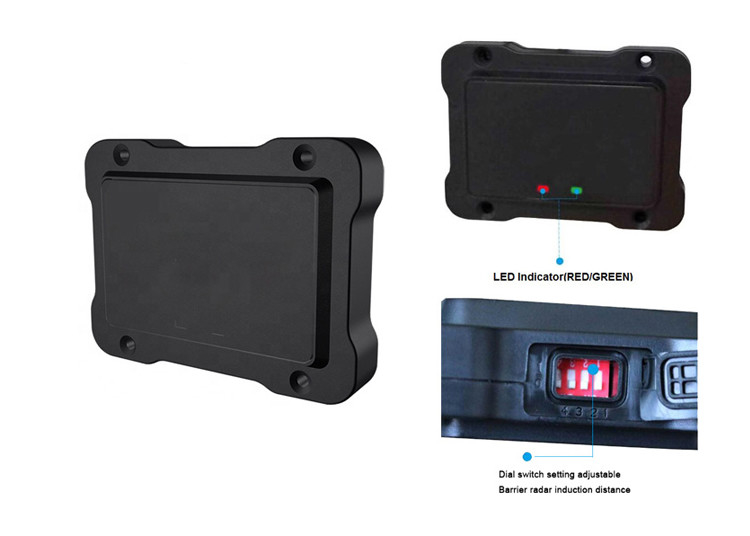

Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector

Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector

    • Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector
    • Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector
  • Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE
    Model Number: TRD-201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US$50~US$55
    Packaging Details: Carton
    Delivery Time: 3-7 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Car Radar Detector Communication: Parking Lot Barrier Gate
    Operating Temperature: -40℃~+85℃ Distance Adjustment Range: 2.0 M~6m (8 Levels)
    IP Grader: IP65 Vehicle Inspection Miss Rate: 0.1%
    High Light:

    24GHz Car Existence Radar Detector

    ,

    IP65 Car Existence Radar Detector

    ,

    100ms Parking Management Barrier Sensor



    Low Cost High Reliability Parking management Gate barrier sensor car existence radar detector


    Product Description



    Brief Introduction

    Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band.

    The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing

    on the target's reflected echoes to achieve fast target Detection.



    Advantages

    The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application



    Product Specification
    Center Frequency
    24GHz
    Horizontal Beam Width
    11°
    Vertical Beam Width
    43°
    Distance Adjustment Range
    2.0 m~6 m (8 levels)
    Response Time
    100ms
    Vehicle Inspection Miss Rate
    0.1%
    Coverage Range
    0 m~6 m
    Pedestrian Detection Miss Rate
    0.1%
    Signal Output
    switching value
    False Detection Rate
    0.05%



    Main Features



    Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector 0




    Detection Accuracy
    With millimeter wave working signal, radar detector has high working frequency, directional accuracy and strong anti-interference and so on excellent performance. The detection rate of different types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. The detection rate of pedestrians is higher than 99.9%.



    Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector 1


    Low Cost to Install and Maintain(no need to damage the road surface)


    The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It not only overcomes the problems of high construction cost and maintenance difficulties for the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves the problem of barrier rod control.


    Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector 2




    All-weather Work
    The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering the radar and causing radar damage.



    Parking Barrier 100ms 24GHz IP65 Car Existence Radar Detector 3


    Convenient Power Supply
    The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control panel, without the need for a separate power supply device.
