IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC

IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC

    • IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC
    • IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC
  • IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE
    Model Number: TRD-201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US$50 ~ US$55
    Packaging Details: Carton
    Delivery Time: 3-7 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Model: TRD-201 Dimension: 105 Mm*78 Mm*26 Mm
    Communication: Parking Lot Barrier Gate Induction Distance: 1 M~6 M
    Sensitivity: Adjustable IP Grader: IP65
    High Light:

    6m Distance Vehicle Loop Detector

    ,

    1.2W Vehicle Loop Detector

    ,

    28VDC Vehicle Radar Detector

    Millimeter wave band Non-contact vehicles and pedestrian 6m detection distance Radar detector


    Brief Introduction



    vehicle radar sensor is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band. The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing on the target's reflected echoes to achieve fast target Detection.



    IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC 0



    PRODOCT SPECIFICATIONS

    Product Radar sensor
    Working voltage 7-28VDC
    Working consumption 1.2W
    Detected Person, car
    Background threshold Auto or manual
    Sensitivity adjustable
    Detect distance Max. 6m(adjustable)
    Dimension 105mm x 78mm x 26mm
    Communication port RS485, on and off signal
    Dimension 115x85x31.2mm
    Material ABS+PC
    Protection IP65

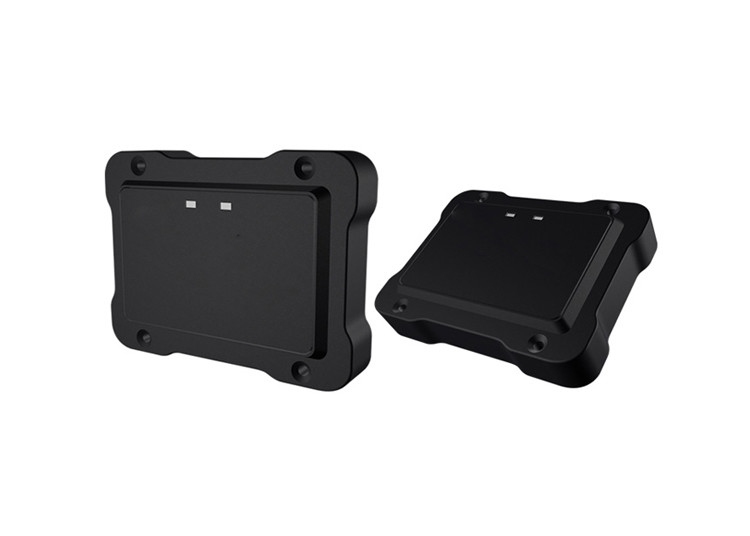

    PRODUCT PHOTO

    IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC 1IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC 2

    MAIN FEATURES AND ADVANTAGES


    24GHz Anti-collision don't need to cut the ground, the installation is simple.
    It can distinguish pedestrians and vehicles, with strong anti-interference, safety and reliability.
    Wide range of use, most of the road gates in the general market, compatible with straight rod machines, fence machines, curved arms, advertising gates, airborne gates.
    Internal circuit adopts high quality electronic components, with stable performance.
    The Vehicle Detector is mainly used to detect the existence and passing of vehicles.



    IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC 3



    Are you still troubled to install loop detector and loops with the below disadvantages?

    1) Cutting ground-Waste time and not good looking;

    2) Complex wiring-Messy and Difficult;

    3) Mud road-Cannot fix the loop;

    4) Cannot detect big truck, trailer or other vehicles with high-bed.



    Why choose barrier radar detector?

    1) Can replace loop detector completely; no wiring layout, save time and cost.

    2) Easy installation; Easy parameters setting; Adjustable distance from 1 to 6m.

    3) Work in range of 24-24.5Ghz without effects from any climatic environment.

    4) Can effectively distinguish vehicles and humans to avoid any hitting.

    5) Can be used for trigger detection, e.g. trigger camera to capture the picture.

    6) Can be used to trigger the alarm in the warning zone.

    7) Can record the traffic and no data is lost when power is off.



    Cost-effective short range 24GHz radar sensor for access control

    It adopts FMCW modulation mode, which can accurately detect people & vehicles, and it has high ability to

    distinguish people & vehicles, so to achieve anti-hit function.



    Trigger radar & Anti-hit radar

    IP65 1.2W 6m Distance Vehicle Loop Detector 7-28VDC 4



    Advantages in the application of access control system
    1, Advanced signal processing technology can be used to detect pedestrians & vehicles stably, and effectively prevent "smashing vehicles and people".
    2, Simple installation, no need to destroy the ground, greatly reducing the difficulty of construction and maintenance costs.
    3, It has communication function of RS485, which is convenient and quick for parameter configuration.
    4, Radar detection distance and area can be adjusted, and it can effectively prevent escape incidents.
    5, Integrated design, small and beautiful, easy to integrate inside & outside.
    6, Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh environment.
    7, Long service life: The life of the ground coil is generally 1~2 years, but the radar can reach 5~10 years.
