Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile
  • Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile
  • Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile
  • Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile

Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT02
Product Details
Arm Sections:
4 Sections
Turning Angle:
90 Degree
Framework Material:
SS304
Frame Dimension:
2300x2300x2300mm
Response Time:
0.2S
Operation Humidity:
0 ~ 95% (No Freeze)
High Light:

SS304 RFID Access Control Turnstile

,

0.2S RFID Access Control Turnstile

,

Anti Tailing Full Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,00pcs per month
Product Description

Anti-tailing RFID reader Access Control Material SS304 24V control voltage Full Body height Turnstile



Introduction:



This Full Height Turnstile is designed with unique, sturdy, and durable mechanical to supply unsupervised access control for workplace or building which notice clever pedestrian control and management. .The impenetrable construction eliminates any un-approved access to restricted areas. To achieve licensed passage by way of the turnstile, the user must present a legitimate card for the access control system. Upon presentation of the legitimate card. The Full-high Turnstiles will unlock and permit the consumer to cross by way of the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.



Features:

1 .A high-brightness directional light under which passage or no passage can be indicated.
2. It can swipe your card to get in and out,The card can also be swiped while the other buttons are on.
3. High quality 304 stainless steel material.The whole product adopts high standard 304 stainless steel and adopts modern technology.Durable and resistant to friction.


Basic Description:

The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.



This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .



Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.

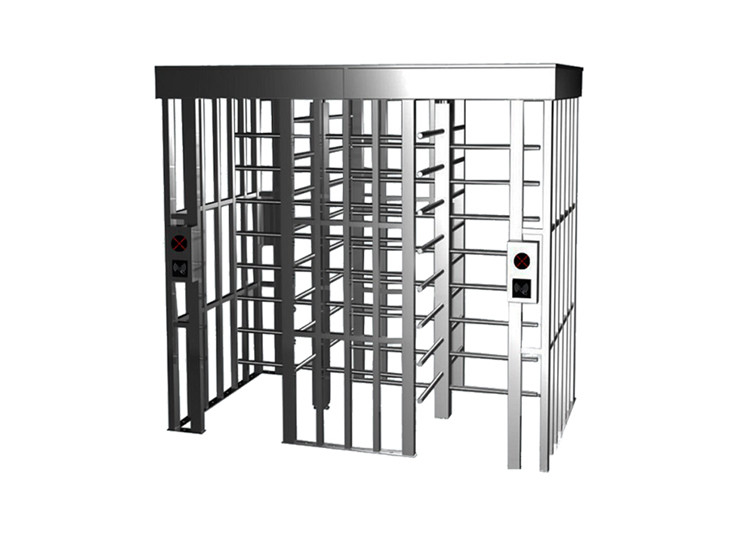

PRODUCT PHOTO

Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile 0Anti Tailing 24V 0.2S SS304 RFID Access Control Turnstile 1

PRODUCT PARAMETER



ITEM SPECIFICATIONS
Brand SINOMATIC
Dimensions 2300*2300*2300mm
Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
Passage width 600mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor



Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30 people / min
Communication interface RS485
Communication distance Less than 1200m
Open brake signal input Dry contact
Switching door time Less than 1S



Control & Interfaces



1. Card readers

2. Metal detection

3. Electronic/LCD counters

4. Fail-open or fail-secure locking

5. Push-button and wireless remotes

6. Indicator lights
