38mm Tube Stoving 0.2S SS304 Full Height Barrier Gate

38mm Tube Stoving 0.2S SS304 Full Height Barrier Gate

    • 38mm Tube Stoving 0.2S SS304 Full Height Barrier Gate
    • 38mm Tube Stoving 0.2S SS304 Full Height Barrier Gate
  • 38mm Tube Stoving 0.2S SS304 Full Height Barrier Gate

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FHT02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,00pcs per month
    Contact Now
    Detailed Product Description
    Passage: 2 Passages Net Weight: About 350
    Material: Stoving Varnish Or SS304 Frame Dimension: 2300x1370x2300mm
    Response Time: 0.2S Operation Humidity: 0 ~ 95% (No Freeze)
    High Light:

    SS304 Full Height Barrier Gate

    ,

    0.2S Full Height Barrier Gate

    ,

    38mm Tube Full Body Turnstile

    0.2 second response time 38mm tube diameter Stoving Varnish or SS304 high security full height barrier gate



    PRODUCT INTRODUCTION

    Full height turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff,

    provide civilized, orderly access methods; effectively manage the access of staff . Can be widely used in some high security places, such as prison, stadium, parking system area, and so on.



    It is extensively use in railway station, banking house, high class club, office, gym, swimming pooletc..



    FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE



    1) Automatically low noise mechanism core equipped, highly cost-performance



    2) Sense positioning, reducing mechanical impact make lifetime longer



    3) Operating efficiency, 1~2 seconds open & close



    4) Lowest Noise : No matter in operating or outside control, Noise control under 30db



    5) Self-checking and Alarm warning for maintainence



    6) Resetting: System cancel authorized pass if passenger delayed pass



    7) Anti-following : prevent illegal passing



    8) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay



    9) The rotary wings will be locked automatically if the system do not receive IR signal



    10) Multi-passage for variety application demands , cover 99% needs on earth



    11) Programmable signal separate control : pass time,pass speed etc. parameter



    12) RS232/RS485 interface meet all kind of communications or wireless connection



    13) Compatible with IC/ID card reader, fingerprint reader, face recognition devices.



    14) Long-distance management through COMPUTER



    15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm

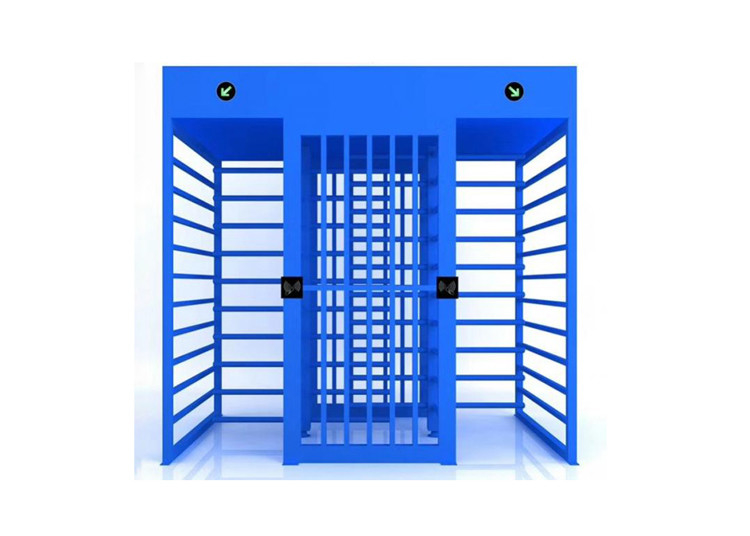

    PRODUCT PHOTO

    38mm Tube Stoving 0.2S SS304 Full Height Barrier Gate 038mm Tube Stoving 0.2S SS304 Full Height Barrier Gate 1

    PRODUCT PARAMETER



    Basic parameters:

    ITEM SPECIFICATIONS
    Dimensions 2300*1370*2300mm
    Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
    Channel width 600mm
    Ambient temperature -20 degrees to 60 degrees
    Working environment indoor and outdoor (outdoor canopy)



    Technical Parameters:

    Input voltage 100V~240V
    Driving voltage 24V
    Equipment power 40W
    Response time 0.2S
    Passing speed 30 people / min
    Communication interface RS485
    Communication distance Less than 1200m
    Open brake signal input Dry contact
    Switching door time Less than 1S




    PRINCIPLE OF OPERATION


    In CLOSE position, the Electromagnetic Locking device prevent the rotor gear from rotating

    This keep the Turnstile in a close position, preventing unauthorized access.



    Upon receiving command signal authorizing access:
    • The locking device release the rotor gear
    • Pedestrian push the rotor to gain access
    • The rotor move by 120°
    • The turnstile lock at close position after pedestrian has passed
