DC24V SUS304 Stainless Steel Tripod Barriers 40persons/min
  • DC24V SUS304 Stainless Steel Tripod Barriers 40persons/min
  • DC24V SUS304 Stainless Steel Tripod Barriers 40persons/min

DC24V SUS304 Stainless Steel Tripod Barriers 40persons/min

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Passage Width:
550mm
Input:
DC24V
Service:
OEM/ODM
Turnstile Type:
Bridge
Power Supply:
AC220V/110V, 50/60Hz
Open Signal:
Dry Contact
High Light:

SUS304 Stainless Steel Tripod Barriers

,

DC24V Stainless Steel Tripod Barriers

,

40persons/min Access Control Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000pcs per month
Product Description

SUS304 Stainless Steel Coin Connector Various working modes Tripod Barriers For Access Control



PRODUCT INTRODUCTION



This tripod is integrated with mechanism, electric, micro-controller ,coin connector and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.



Parameters:

Model
SN-TT03
Size
1200*280*980mm
Material
1.5mmSUS304
Passage Width
550mm
Passage direction
Bi-directional
Pass rate
30-40persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
5%~95%
Working temperature
-45℃~+70℃
Working environment
Indoor/outdoor
Mechanism
Mould machine core+mould bracket+Domestic solenoid

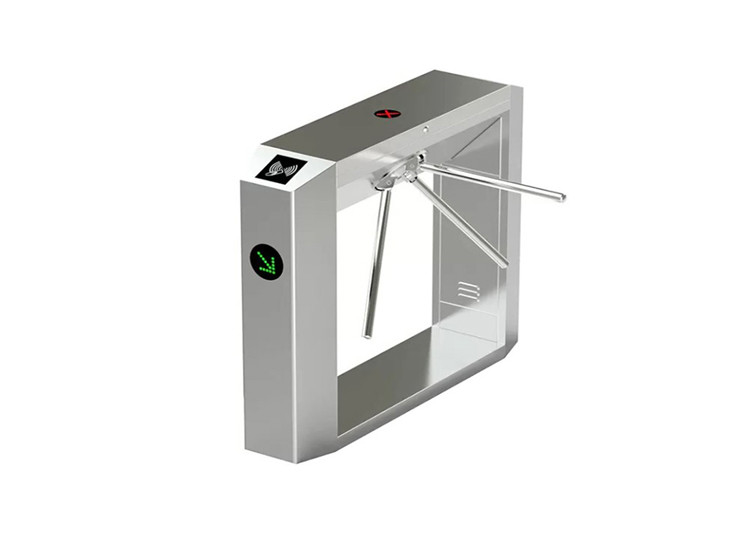

PRODUCT PHOTO

DC24V SUS304 Stainless Steel Tripod Barriers 40persons/min 0DC24V SUS304 Stainless Steel Tripod Barriers 40persons/min 1

PRODUCT FUNCTIONS AND FEATURES



1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.



2. Running stable, little noise and no mechanical impact



3. Self-checking-power-on function, if power on, turnstile will auto get to be held.



4. Various working means can be chose.



5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.



6. Anti tail function auto-lock once turn 120° .



7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also

computer far control and management can be realized by computer.



8. Manual button or remote control ,Bi-directional passage



Packaging Details


Commodity: Tripod Turnstile Barrier
Package Type: Export Wooden Box
Product Dimension: L1200 * W280 * H990mm
Packing Dimension: L1300 * W400 * H1160mm
Unit Weight: 60kg
Gross Weight: 80kg
CBM: 0.60CBM/pcs
Port: Shenzhen Yantian, Shekou
Lead Time : 3-7days



FAQ:

1.Will you install the turnstile for the first time?

The installation is very simple, just put the product fixed well, and insert 110V/220V power supply, can normal use.



2.Can machines be used outside?

It can be used outside. We all have waterproof function.



3.What is the warranty for the machine?

(1) we warranty all goods for at least 12 months.

(2) within the warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)



4.When will you make the delivery?

Regular products:(3-5 days),irregular products:communication when you place the order.



5.How does your factory control the quality?

We always attach great importance to quality controlling from the beginning to the ending.



6.What is your MOQ?

Any quantity is acceptable for your order. And the price is negotiable for big quantity.



7.Payment term?

For sample 100% payment in advance.  For bulk order, 30% in advance, 70% before delivery
