Home ProductsFull Height Turnstile

40W Mechanical Solenoid Lock Full Height Turnstile 30person/min

40W Mechanical Solenoid Lock Full Height Turnstile 30person/min

    • 40W Mechanical Solenoid Lock Full Height Turnstile 30person/min
    • 40W Mechanical Solenoid Lock Full Height Turnstile 30person/min
  • 40W Mechanical Solenoid Lock Full Height Turnstile 30person/min

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FHT02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,00pcs per month
    Contact Now
    Detailed Product Description
    Passage Width: 600mm Passage Height: 2000mm
    Overall Height: 2300mm Application: Indoor / Outdoor
    Passing Speed: 30person/min Protection Grade: IP55
    High Light:

    Mechanical Solenoid Lock Full Height Turnstile

    ,

    30person/min Full Height Turnstile

    ,

    40W Full Height Gate

    Stainless Steel Automatic Security Access Control Mechanical solenoid lock School Turnstile door



    Basic Description

    The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas.



    To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.



    This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .



    Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.







    FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE

    1) Low noise mechanism core equipped, highly cost-performance



    2) Sense positioning, reducing mechanical impact make lifetime longer



    3) Operating efficiency, 1~2 seconds open & close



    4) Lowest Noise : No matter in operating or outside control, Noise control under 30db



    5) Self-checking and Alarm warning for maintain



    6) Resetting: System cancel authorized pass if passenger delayed pass



    7)Anti-following : prevent illegal passing



    8)Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay



    9) The rotary wings will be locked automatically if the system do not receive open signal



    10) Multi-passage for variety application demands , cover 99% needs on earth



    11) Programmable signal separate control : pass time,pass speed etc. parameter



    12)  Long-distance management through COMPUTER



    13) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm



    PRODUCT PARAMETER

    Basic parameters:

    Dimensions 2300*1370*2300mm
    Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
    Channel width 600mm
    Ambient temperature -20 degrees to 60 degrees
    Working environment indoor and outdoor (outdoor canopy)

    Technical Parameters:

    Input voltage 100V~240V
    Driving voltage 24V
    Equipment power 40W
    Response time 0.2S
    Passing speed 30 people / min
    Communication interface RS485
    Communication distance Less than 1200m
    Open brake signal input Dry contact
    Switching door time Less than 1S

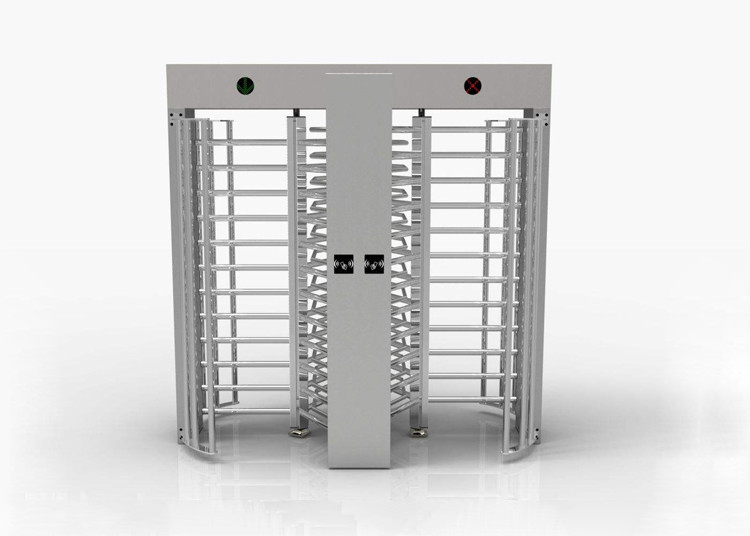

    PRODUCT PHOTO

    40W Mechanical Solenoid Lock Full Height Turnstile 30person/min 040W Mechanical Solenoid Lock Full Height Turnstile 30person/min 1



    Optional Control & Interfaces

    1. Card readers

    2. Metal detection

    3. Electronic/LCD counters

    4. Fail-open or fail-secure locking

    5. Push-button and wireless remotes

    6. Manual key override both directions

    7. Indicator lights
