Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S

Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S

    • Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S
    • Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S
  • Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FHT02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,00pcs per month
    Contact Now
    Detailed Product Description
    Power Supply: AC220V/110V And 50/60Hz Net Weight: 350
    Passage Width: About 600mm Frame Dimension: 2300x1370x2300mm
    Working Environment: Indoor / Outdoor Operation Humidity: 0 ~ 95% (No Freeze)
    High Light:

    SS304 Double Way Barrier Gate

    ,

    AC220V Double Way Barrier Gate

    ,

    0.2S Pedestrian Overhear Barrier Gate

    SS304/316 Stainless Steel Fingerprint Access Pedestrian overhear double way Barrier Gate





    PRODUCT INTRODUCTION



    Full height turnstile ---can be compatible with IC card, ID card,barcode card, fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in some high security places, such as prison, stadium, parking system area, and so on.


    It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.


    It can restrict passage only to people who insert /scan a ticket, an ID cards, access card , thus a turnstile can be used in the case of paid access for example public transport, or to restrict access to authorized people in corporate houses or entrances of any building. Turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby.


    Available in superior quality stainless steel material.







    FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE



    1. It has stable and reliable mechanical locking device, precise movement and turntable combination structure with special process;


    2. With two-way traffic function, the steering lever is divided into two directions and one direction;


    3. With power-off and opening function, in case of emergency, the cross-door shaft is switched from locked to free-pass mode, and pedestrians can pass quickly to meet the fire-fighting channel requirements;


    4. After the pedestrian reads the valid card, if the system does not pass within the specified time of the system, the system will automatically cancel the pedestrian access right;


    5. Install the two-way arrow indicator to indicate the traffic status, and pass or prohibit the passage;


    6. An external bidirectional flow counter can be connected to display the number of people in the traffic direction;


    7. The entire system runs smoothly with low noise


    8. The anti-reverse device function prevents the rotating unit from rotating opposite to the original direction;


    9. Unified standard external electrical interface, can be connected with a variety of card readers, and can be remotely controlled and managed through a management computer;



    PRODUCT PARAMETER

    Basic parameters:

    Dimensions 2300*1370*2300mm
    Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
    Channel width 600mm
    Ambient temperature -20 degrees to 60 degrees
    Working environment indoor and outdoor (outdoor canopy)

    Technical Parameters:

    Input voltage 100V~240V
    Driving voltage 24V
    Equipment power 40W
    Response time 0.2S
    Passing speed 30 people / min
    Communication interface RS485
    Communication distance Less than 1200m
    Open brake signal input Dry contact
    Switching door time Less than 1S

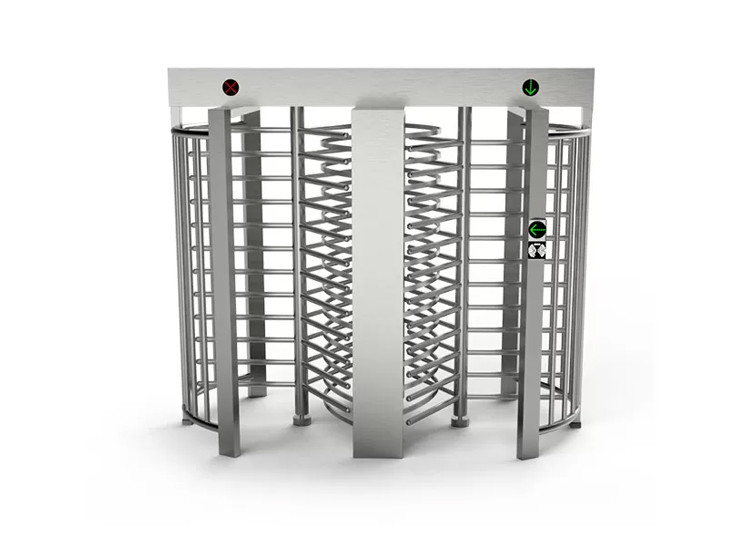

    PRODUCT PHOTO

    Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S 0Pedestrian Overhear AC220V SS304 Double Way Barrier Gate 0.2S 1


    PRINCIPLE OF OPERATION


    In CLOSE position, the Electromagnetic Locking device prevent the rotor gear from rotating

    This keep the Turnstile in a close position, preventing unauthorized access.



    Upon receiving command signal authorizing access:
    • The locking device release the rotor gear
    • Pedestrian push the rotor to gain access
    • The rotor move by 120°
    • The turnstile lock at close position after pedestrian has passed
