DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min

DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min

    • DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min
    • DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min
    • DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min
  • DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SLB02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Framework Material: SS304 Material Thickness: 1.2mm Thickness SS304
    Wing Material: 10mm Thickness Acrylic Wing Height: 1.2m To 1.5m
    Flow Rate: 30persons/min Direction: Bi-directional
    High Light:

    SS304 Acrylic Retract Gate Barrier

    ,

    0.2S Acrylic Retract Gate Barrier

    ,

    30persons/Min Access Control Barriers

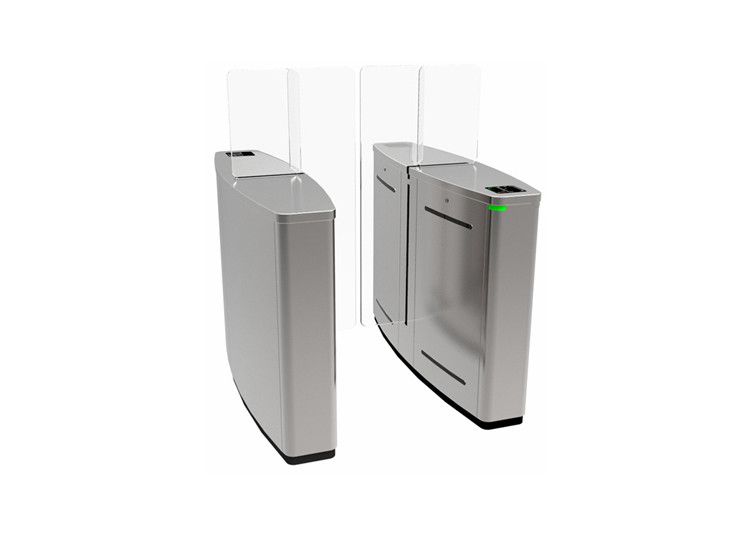

    DC 24V brushless motor SS304 framework body height high acrylic panel Retract Gate Barrier



    PRODUCT DESCRIPTION



    SHENZHEN SINOMATIC Retract Barrier system is designed similar to most Flap Barrier. The only difference is its ability to support high acrylic panels. The high acrylic panel provide additional protection, prevent jump over, passing of subversive item across the barrier, etc. It act as a door as well as a pedestrian barrier. The acrylic panels barrier dimension can be manufactured according to customer's specification.



    Elegant in appearance and yet meet the stringent specification of high security, safety and fast traffic throughput. It is fitted with stainless steel housing with centrally position glass barrier. The pedestal top is of stainless steel (as standard supply). Optional choice for the pedestal top are: wood or poly stone, to match the friendly environment and modern front lobby entrance.





    Features:



    1. Fault detection and alarm functions, easy to use and maintenance.


    2. The running status can be programmed and controlled with the built-in keyboard on the main board.


    3. Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).


    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.


    5. Synchronization functions (for dual gates).


    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.


    7. Gate can be set as normally open or normally closed.


    8. Can be used with variety of card readers: RFID readers, bar codes, fingerprints, etc. (Access controller needed).


    9. Direction can be set as uni-direction or bi-direction.


    10. LED direction indicator.



    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements


    12. Alarm function, in case of illegal intrusion and reverse intrusion


    13. Support infrared photocell for anti-pinch and reset function



    PRODUCT PARAMETER



    Model
    SN-SLB02
    Size
    1200x330x1000mm
    Framework Material
    1.2mm thickness SS304
    Panel material
    10mm acrylic
    Passage Width
    550mm(default)
    Passing direction
    Single directional/Bi-directional
    Pass rate
    30 persons/minute
    Operating time
    0.2 seconds
    Power input
    AC100-240V,50/60HZ
    Working voltage
    24V
    Working humidity
    5%~95%
    Working temperature
    -40℃~+70℃
    Working environment
    Indoor/outdoor with tent
    Communication interface
    Dry contact
    Mechanism
    Brushless motor
    Infrared sensor
    4 pairs(default)
    MCBF
    5,000,000 Cycles
    Application
    Airports, Hotels, Governemnt Halls, etc



































































    PRODUCT PHOTO

    DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min 0DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min 1DC24V 0.2S SS304 Acrylic Retract Gate Barrier 30persons/min 2
