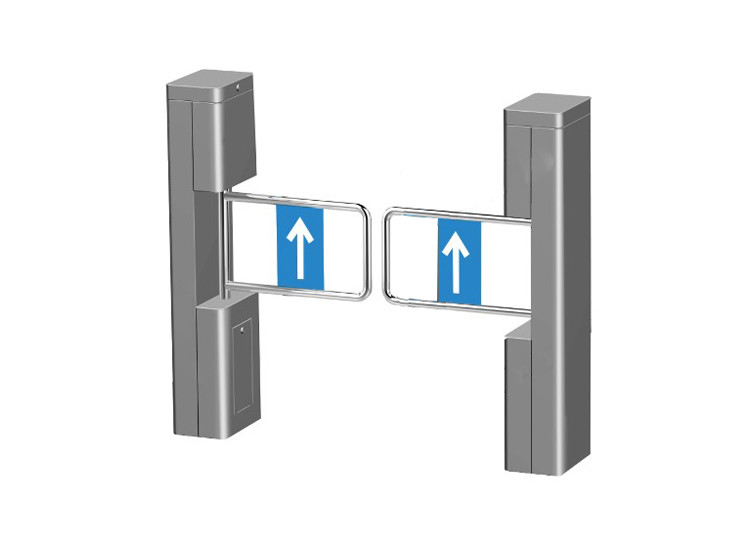

40person/min 100W SS304 Access Control Swing Gate

40person/min 100W SS304 Access Control Swing Gate

  • 40person/min 100W SS304 Access Control Swing Gate
  • 40person/min 100W SS304 Access Control Swing Gate
  • 40person/min 100W SS304 Access Control Swing Gate
  • 40person/min 100W SS304 Access Control Swing Gate
40person/min 100W SS304 Access Control Swing Gate
Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SB02M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Power Supply: AC220V±10%, 50HZ,AC110±10%, 60HZ Drive Motor: DC 24V Brushless
Flow Speed: 30~40person/min Arm Lenght: Max. 800mm For Single Unit
Dimension Of Housing: 20x20x100cm Top Cover: SS304/Acrylic Optional
High Light:

SS304 Access Control Swing Gate

,

100W Access Control Swing Gate

,

40person/Min Swing Barrier Gate

High-grade Access Control Management maintenance free Swing Barrier Gate for office building



Structure parameters
Housing material 304 grade stainless steel
Thickness 1.2mm
Surface treatment Brushed finish
Arm material Acrylic / SS304
Technical parameters
Size 200*200*1000mm
Lane width 550--800mm for single unit
Passing speed 30-40 people/min
Open/close speed 0.5 sec
Weight 20KG
Turning angle 90 degree
infrared sensors Optional
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -20 to 60℃
Relative humidity 5% to 95%
Package Carton box for sample,Wooden case optional
Electronic parameters
Power supply 110-220V/AC, 50/60HZ
Rated power 100W
Input signal Dry contact
Driving motor DC brushless motor
Method of position Encoder to make sure accurate position



PRODUCT PHOTO

40person/min 100W SS304 Access Control Swing Gate 040person/min 100W SS304 Access Control Swing Gate 1

40person/min 100W SS304 Access Control Swing Gate 240person/min 100W SS304 Access Control Swing Gate 3

SPOTLIGHTS



1. Innovative design and exquist maching to meet the high end access control solution



2. Fast pass speed Turnstile to ensure an orderly access of 30-40 people per minute



3. SS 304 Stainless Steel anti-fingerprint



4. Brushless Motor to make it a good performance



5. Easy operation and free maintenance



6. 12 month product warranty.



7. Custom design shape and logo, for large amount, custom logo available for free.



8. Supported by professional engineers.



9. Special discount of our distributors or agents in their area.



10. Packing in carton for sample, can pack it by wooden case for bulk order with better protection grade.



APPLICATION

40person/min 100W SS304 Access Control Swing Gate 4





MAIN FEATURES


1. Stainless steel housing, rain-proof, novel and beautiful.


2. The electric control adopts brushless motor to drive stable and reliable, and has low failure rate.


3. Length of arm: Valid lenght from around 800mm


4. Fault detection and alarm functions, easy to use and maintenance.


5. The running status can be programmed and controlled with the built-in keyboard on the main board.


6. Support infrared photocell for anti-pinch and reset function.


7. Anti-breakthrough function. The gate is locked automatically until opening signal received.


8. Synchronization functions (for dual gate equipment).


9. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the
authority of the current user automatically.



10. Gate can be set as normally open or normally closed.


11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)


12. Direction can be set as unidirectional or bidirectional.


13. The device can be connected to management computer to realize remote control and management.


14. LED direction indicator (optional)


15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
