Home ProductsFlap Barrier Gate

Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s

Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s

    • Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s
    • Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s
  • Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Infrared Sensor: 3 Pairs (default) MCBF: 5 MILLIONS
    Operation Voltage: 24V DC Power Consumption: 40W
    Operation Humidity: 0 ~ 95% (No Freeze) Working Environment: Indoor / Outdoor With Shelter
    High Light:

    40W Stainless Steel Flap Turnstile

    ,

    0.2s Stainless Steel Flap Turnstile

    ,

    Waist Height Retractable Flap Turnstile

    24V DC BRUSHLESS MOTOR AUTOMATIC WAIST HEIGHT RETRACTABLE STAINLESS STEEL FLAP BARRIER GATE



    PRODUCT SPECIFICATION

    Model SN-FB01
    Brand SINOMATIC
    Framework material SS304
    Working Voltage AC220V±10V / AC110V±10V
    Operating Temperature -20 to 60°C
    Humidity <95%, without concretion
    Passage Width Less than 600mm
    Passing Speed

    40 persons/min (normal open),

    30 persons/min (normal close)

    Flap length 270mm
    Housing Dimension 1200*300*1000mm
    Arm Open/Close Time 0.2s







































































    GERENAL DESCRIPTION



    • Optical flap turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions.
    • The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
    • It is ideal for both indoor and outdoor settings.
    • It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
    • It has sufficient space, which can be mounted with any type of external device( e.g.: Display, Counter, Reader, Pushbutton, Card collector, Coin insert, Barcode/QR reader, Wheel).
    • In case of emergency, the flap arms will open automatically to allow free passage when power off.
    • It is suitable for areas with high pedestrian traffic (e.g.: Hotel, Building, Dormitory, Station, Airport, Park).

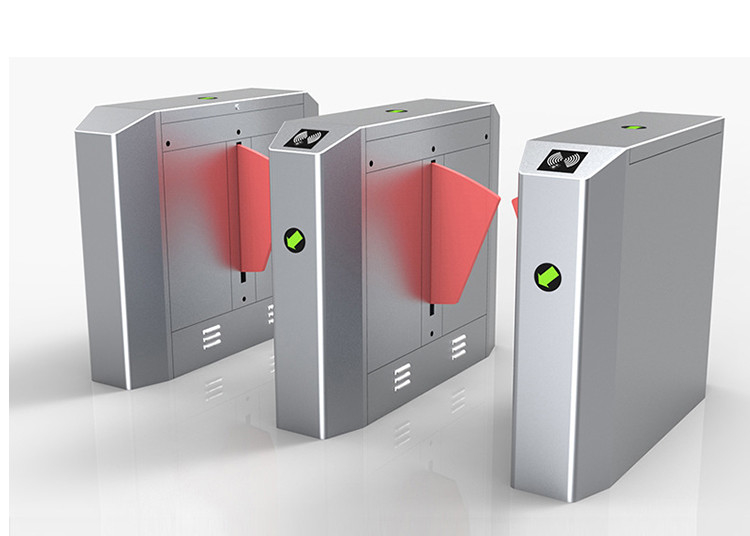

    PRODUCT PHOTO



    Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s 0Waist Height Retractable 40W Stainless Steel Flap Turnstile 0.2s 1





    Features of Flap Barrier Gate



    1.With fault self-test and alarm prompt function, convenient for user maintenance and use.



    2.Through the built-in small push-pull on the main control board, device operating state can be programed.



    3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).



    4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes



    5.Anti-shock function, the arm is automatically locked when no open signal is received.



    6.Telescopic arms are adjustable synchronously (for double pendulum)



    7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.



    8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)



    9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.



    10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.



    11.Voice prompt function.



    12.Remote control and management can be achieved directly through the management computer.
