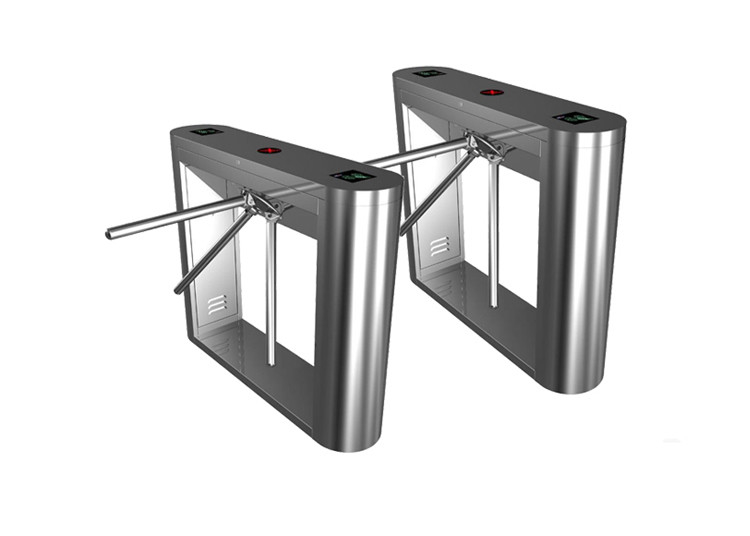

Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate

Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate

    • Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate
    • Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate
  • Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TT03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1,000pcs per month
    Contact Now
    Detailed Product Description
    Brand: SINOMATIC Application: Indoor/outdoor(with Shelter)
    Arm Length: 510mm Product Life: 5 Million Times
    Housing Thickness: 1.2mm 304 Stainless Steel Housing Size: 1200*280*980mm
    Origin: SHENZHEN CHINA Package: Plywood
    High Light:

    510mm Arm Tripod Turnstile Gate

    ,

    24VDC Tripod Turnstile Gate

    ,

    40W Stainless Steel Turnstile Gate

    Indoor Outdoor Electronic 35 person per minute flow rate Automatic Tripod Turnstile access control system



    Brief Introduction



    Tripod Turnstile Gate is intelligent passage management equipment researched, developed and produced by our company.

    The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques.

    It can be used for intelligent control and management of the passage after equipped with different read/write devices.

    The outline of the product is formed after bending the stainless steel plate.The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.







    Specifications of Tripod Turnstile Gate:



    Model No. SN-TT03
    Framework Material 304 Stainless Steel
    Dimension 1200 * 280 * 980mm
    Net Weight 60kg
    Passage Width 550mm (Arm length: 500mm)
    Passing Direction Single directional / Bi-directional
    Power Supply AC220V/110V, 50/60Hz
    Operation Voltage 24VDC
    Power Consumption 40W
    Operation Temperature -20 °C – 60 °C
    Operation Humidity 0 ~ 95% (No freeze)
    Working Environment Indoor / Outdoor (Shelter)
    Flow Rate 30-35 people per minute
    LED Indicator Yes
    Input Dry contact
    Emergency Automatic arm drop when power off





    Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate 0Fingerprint 24VDC 40W 510mm Arm Tripod Turnstile Gate 1



    Reliability



    • Alloy steel tripod hub prevents mechanical wear

    • Casework and tripod arms manufactured in SS304 stainless steel

    • Electromagnets for lock are used only when activated. They are in standby mode when the device is idle.

    • Patented compact mechanism ensue the long life of the lubricating oil inside.

    • High quality electrical components



    Safety and User-Orientated Design



    • Drop arm design for emergency purpose

    • There are no exposed screws, it is safer for the user.

    • Smooth operation designed for mas transit application

    • The pictogram on the device indicating access permission and direction of movement

    • Special designed case shape, it is user-friendly for passenger to punch card or finger.

    • Anti-tailgate



    Easy Integration



    • Flexible reader installation plate. Customer can easily integrate third party reader.

    • Standard electrical interface for third party device.

    • Using compact mechanism, the turnstile has more space inside for integration

    • We provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just and plug in and do the setting. Save the cost of installation.

    • The two columns at the ends provide more space for system integration
