| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FHT01 |
Indoor / Outdoor 30 person per minute flow rate overhead full height revolving door system
PRODUCT DIMENSION
FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE
1. Long-life performance, high operation dependability and fast response
2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
3. Single directional or Bi-directional is selectable
4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
5. Anti-tailing function: only one person passes at one time
6. When power is off, arms will open automatically, which is complying with fire safety requirements
7. LED indicator (red × means no entry; green → means entry)
8. Structure of trunking to contain cable tidy inside the case
9. Easy to install and maintain
10. 1-year warranty support

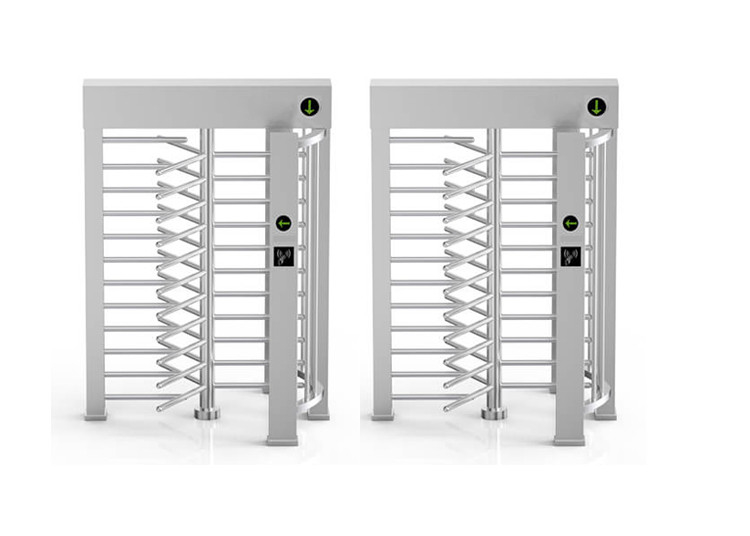

PRODUCT PHOTO
PRODUCT PARAMETER
| Model No. | SN-FHT01 |
|---|---|
| Brand | SINOMATIC |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 1500 * 1343* 2300mm |
| Weight | 210kg/pcs |
| Passage Width | 610mm |
| Arm Support | 120° rotors with 3 sections or 90° rotors with 4 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 5 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24VDC |
| Power Consumption | 40W |
| Operation Temperature | -20 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 30 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal |
PRINCIPLE OF OPERATION
In CLOSE position, the Electromagnetic Locking device prevent the rotor gear from rotating
This keep the Turnstile in a close position, preventing unauthorized access.
Upon receiving command signal authorizing access:
• The locking device release the rotor gear
• Pedestrian push the rotor to gain access
• The rotor move by 120°
• The turnstile lock at close position after pedestrian has passed
