Face Recognition 0.2s SS304 Swing Barrier Turnstile 30Persons/Min
  • Face Recognition 0.2s SS304 Swing Barrier Turnstile 30Persons/Min
  • Face Recognition 0.2s SS304 Swing Barrier Turnstile 30Persons/Min

Face Recognition 0.2s SS304 Swing Barrier Turnstile 30Persons/Min

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB03
Product Details
Barrier Type:
Swing Arm
Warranty:
1 Year
Motor:
DC Brushless Motor
Motor Voltage:
DC 24V
Housing Material:
SS304
Arm Material:
SS0304/Acrylic
High Light:

SS304 Swing Barrier Turnstile

,

30Persons/Min Swing Barrier Turnstile

,

0.2s Face Recognition Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Access Control Pedestrian Security Swing Arm Turnstile For hospital Entrance



Working principle



1). Turn on the power, turnstile enter the self-check mode ,The arm turn and lock up automatically.System enter into work mode after beep sound

2). After swipe legal card or QR code and fingerprint, Access control device send opening signal to main board.

3). When the control board receives opening signal, the indicator and motor trigger valid signal. Then the indicator turns to green, arm turn small angle.

4) If push arm without permissions, turnstile control board alarm ,arms will be locked automatically, and then reset.



PRODUCT PARAMETER



Product name Swing barrier
Material 304 Stainless steel
Working voltage 220V,50Hz/ 110V, 60Hz
Channel width(single unit) 600mm
Passing speed 30 persons/min
Opening time 0.2s
Open signal Dry Contact
Working environments Indoor or outdoor (under shed)
Size 1200x280x1000mm
Gross weight 70KG
Ambient temperature -25 °C ~ +70 °C
Humidity ≤90% no condensation
Normal life 5 million times



PRODUCT PHOTO

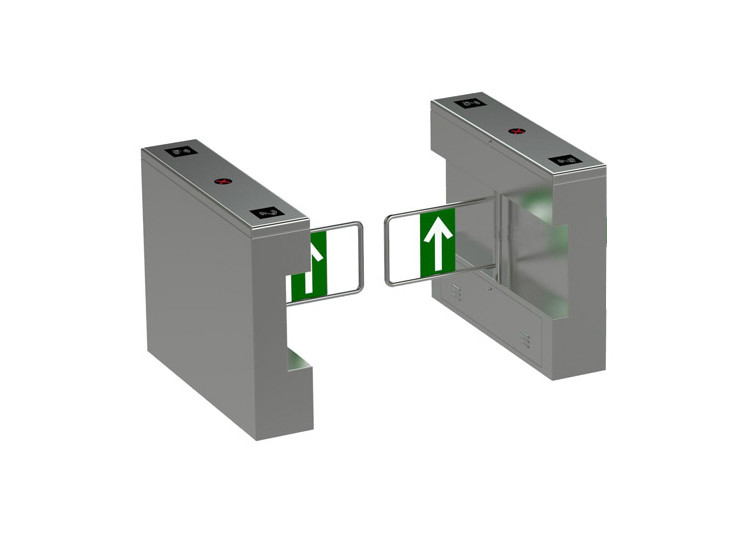

Face Recognition 0.2s SS304 Swing Barrier Turnstile 30Persons/Min 0

Face Recognition 0.2s SS304 Swing Barrier Turnstile 30Persons/Min 1



Features & function of swing arm barrier



1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate.



2. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;



3. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.



4. Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.



5. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.



6. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.



7. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.



8. Gate length can be easily customized to fit site requirement.



9. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.



10. Gate motor mechanism is self lock at open and close position.



11. Support bi-directional opening



12. Can integrate with access control system.



13. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
