Automatic Rising Bollards
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |

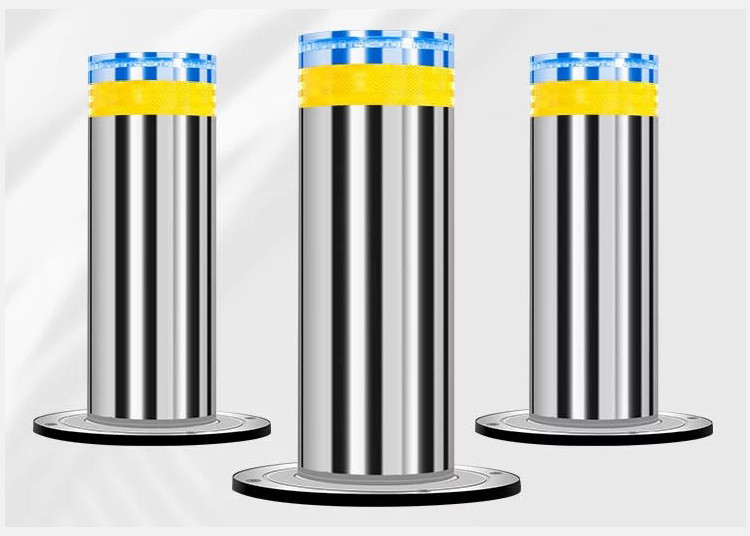

304 Stainless Steel Pipe Retractable Electric Waterproof Function Hydraulic Rising Automatic Road Bollard Systems
DESCRIPTION
This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
PRODUCT PARAMETERS
| Product name | Electric automatic bollard |
| Control system | Electric-hydraulic operated |
| Maximum weight of passing cars | 100 Tons |
| Power supply | 220 V (control voltage: 24V) |
| System power | 1.5kW / 2.2kW |
| Rising time | ≤ 4 s (adjustable) |
| Dropping time | ≤ 2 s (adjustable) |
| Working temperature | -65°C ~75°C |
| Material | #304 stainless steel |
| Diameter of pillar | 219mm (168mm, 273mm, 324mm are also available) |
| Thickness of housing | 6mm(8mm, 10 mm,20mm are also available) |
Main Features
1.Different thickness of steel is available (default 6 mm)
2.Different color is available
3.Customized size is available
4.Steady and safe due to the OMRON PLC control system
5.Speedy rising time and durable quality with hydraulic pressure
6.Lowering down the bollard by backup battery, in case of power failure or fault of automatic system
7.Housing with durable and stainless Galvanization
8.Optimization of frame structure, high anti-impact capability, high loading capability
9.High security and anti-collision ability
10.With a reflective band and a low energy consumption LED light at night
