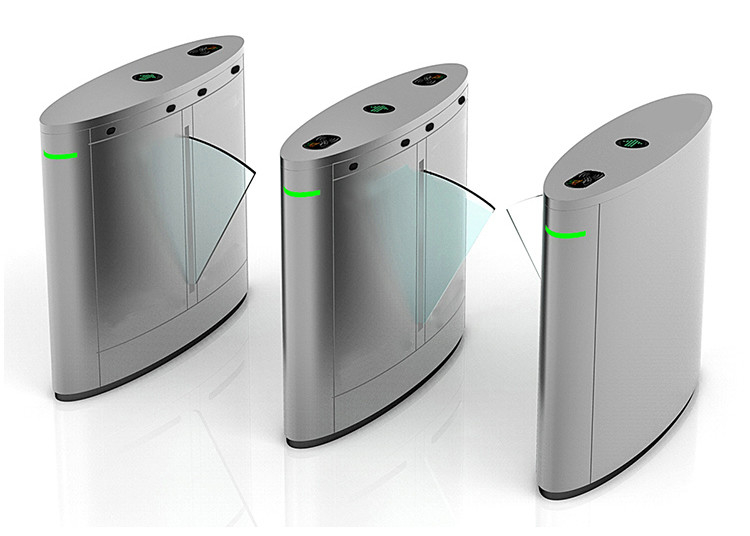

DC 24V 10mA Access Control Clear Acrylic Flap Turnstile

DC 24V 10mA Access Control Clear Acrylic Flap Turnstile

    • DC 24V 10mA Access Control Clear Acrylic Flap Turnstile
    • DC 24V 10mA Access Control Clear Acrylic Flap Turnstile
  • DC 24V 10mA Access Control Clear Acrylic Flap Turnstile

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Sensing Method: Slot Reader Application: Access Control System
    Movement: Single/Double Type: Wing Gate
    Flap Opening / Closing Time: 1s Working Temperature: -20°C~60°C
    Reset Time When Power On: 3s Control Voltage: DC24V
    High Light:

    Access Control Acrylic Flap Turnstile


    Clear Acrylic Flap Turnstile


    10mA Flap Barrier Turnstile

    Flap Type Automatic Turnstile Control Board Access Control Clear Acrylic Flap Gate Barrier




    Flap turnstile is an intelligent channel device, which can easily integrate IC card, ID card, QR code, fingerprint, face and other recognition devices, and can realize the intelligent and efficient management of the channel; it adopts bridge-type high-end arc design and elegant appearance It is mainly used for the management of the entrance and exit of the passage, which has the characteristics of safety, convenience, prevention of illegal entry and exit, and rapid control of free passage in emergency situations.





    Applications of Flap Barrier Gate


    1. The station, wharf, tourist attraction, entrance and exit management channel of factory

    2. Recount channel management of exhibition, swimming pool, etc

    3. Time attendance, access control, consumption management for enterprise or business buildings

    4. Special channel management system


    Features of Flap Barrier Gate


    1.With fault self-test and alarm prompt function, convenient for user maintenance and use.


    2.Through the built-in small push-pull on the main control board, device operating state can be programed.


    3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).


    4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes


    5.Anti-shock function, the arm is automatically locked when no open signal is received.


    6.Telescopic arms are adjustable synchronously (for double pendulum)


    7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.


    8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)


    9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.


    10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.


    11.Voice prompt function.


    12.Remote control and management can be achieved directly through the management computer.


    Specifications of Flap Barrier Gate


    Power supply
    AC220±10%V 50Hz/AC110±10% 60Hz
    Motor voltage
    DC 24V
    Access device input voltage
    Dry contact or 12V electrical level signal or > 100ms 12V impulse signal,
    driving current > 10mA
    Can be set as single or double
    Max flow rate
    25 to 30 person per minute
    Flap openning/closing time
    Flap lenght
    Flap material
    Acrylic or foam
    Working temperature
    Working humidity
    Indoor/ outdoor with tent


    Case of Flap Barrier Gate


    DC 24V 10mA Access Control Clear Acrylic Flap Turnstile 0


    DC 24V 10mA Access Control Clear Acrylic Flap Turnstile 1


    Why choose us:


    1. Our Factory has 18 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
