SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums

SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums

    • SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums
    • SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums
  • SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FHT01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,00pcs per month
    Contact Now
    Detailed Product Description
    Flow Rate: 25 To 30 Person Per Minute Rotating Degree: 120 Degree/ 90 Degree
    Material Of Housing: SS304 Size Of Housing: Customized
    OEM/ODM: Supported Arm Length: 500mm To 600mm
    High Light:

    600mm Arm Full Height Turnstile

    ,

    0.2 Seconds Full Height Turnstile

    ,

    SS304 Pedestrian Barrier Gate

    High Security Mechanical Access Management for Stadiums Factory Energy Park full height turnstile



    Product Description


    Full Height Turnstile High Security Mechanical Tripod Management for Stadiums Factory Energy Park
    Full height turnstile is designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices



    Applications of Full Height Turnstile



    Full height turnstile series are widely used  and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.





    Features of Full Height Turnstile:



    • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



    SPECIFICATIONS:



    Model
    SN-FHT01
    Material
    1.2mm.thickness SS304
    Pass Width
    600mm
    Passage direction
    Single directional/Bi-directional
    Pass rate
    30 persons/minute
    Operating time
    0.2 seconds
    Power input
    AC100-240V, 50/60HZ
    Working voltage
    24V
    Working humidity
    30%~95%
    Working temperature
    -40℃~+70℃
    Working environment
    Indoor/ Outdoor available
    Communication interface
    Dry contact
    MCBF
    5,000,000 Cycles
    Application
    Stadium, Apartment, Museum, Station, Factory, etc

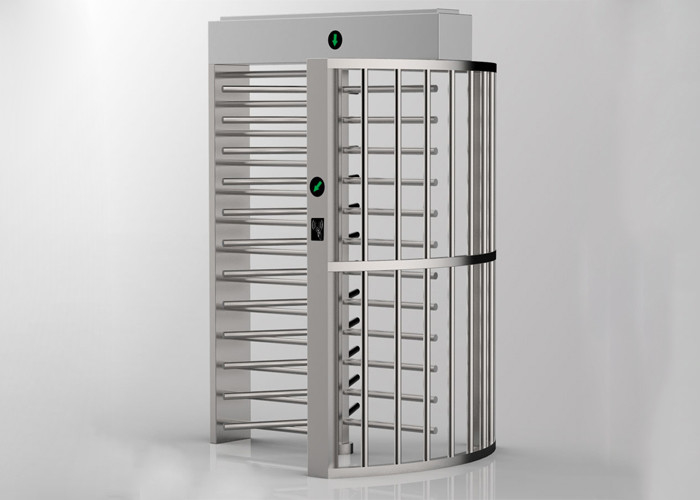

    PRODUCT PHOTO



    SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums 0



    Cases of Full Height Turnstile:



    SS304 0.2 Seconds 600mm Arm Full Height Turnstile For Stadiums 1



    Why choose us:



    1. Our Factory has 18 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
