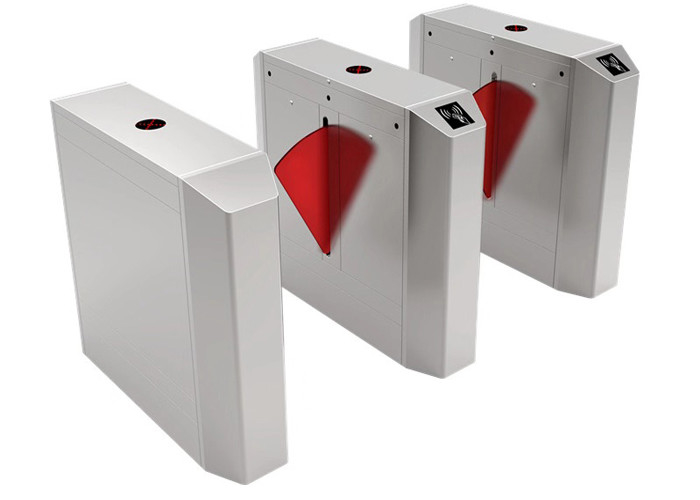

Face Recognition IP44 45W Pedestrian Entrance Flap Barrier

Face Recognition IP44 45W Pedestrian Entrance Flap Barrier

    • Face Recognition IP44 45W Pedestrian Entrance Flap Barrier
    • Face Recognition IP44 45W Pedestrian Entrance Flap Barrier
  • Face Recognition IP44 45W Pedestrian Entrance Flap Barrier

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Model No.: SN-FB01 Arm Length: 270mm
    Size Of Housing: 1200*300*1000mm Flap Opening / Closing Time: 1s
    Material: SS304 Material Thickness: 1.2mm To 1.5mm
    Power Supply: AC100V-240V Application: Indoor/outdoor
    High Light:

    45W Pedestrian Entrance Flap Barrier

    ,

    IP44 Pedestrian Entrance Flap Barrier

    ,

    Face Recognition Flap Barrier Turnstile

    Best seller pedestrian entrance checkpoint security flap barrier turnstile door with rfid reader



    Performance and Feature:
    1. Fault detection and alarm functions, easy to use and maintenance.
    2. The running status can be programmed and controlled with the built-in keyboard on the main board.
    3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
    5. Synchronization functions (for dual gate equipment).
    6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
    7. Gate can be set as normally open or normally closed.
    8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
    9. Direction can be set as single-direction or bi-direction.
    10. LED direction indicator.
    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
    13. Counter function (optional).
    14. Support infrared photocell for anti-pinch and reset function



    Communication:
    Dry contat relay with 12V OR 24V pulse.
    TCP/IP communication with computer.




    Model Number
    SN-FB01
    Passage width
    ≤850mm
    Throughput rate
    30p/m
    Power supply
    AC100-240V
    Operational voltage
    DC24V
    Max power consumption
    45W
    Frequency
    50-60HZ
    prectection level
    IP44
    Working temperature
    -20 to +60 degree
    Dimension excluding bars
    1200X300X1000mm
    Net weight including flap
    60kg
      Gross weight   80KG







    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 0

    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 1



    Product dimension

    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 2

    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 3



    Case of Flap Barrier Gate

    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 4



    Access control system

    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 5

    Face Recognition IP44 45W Pedestrian Entrance Flap Barrier 6



    Our Services & Strength



    1. Any Inquiry will be replied within 24 hours.
    2. Professional manufacture. Welcome to visit our wesite.
    3. OEM/ODM available:
    1) Silk print logo on machine.
    2) Customized the shape, color, and dimension.
    3) Any idea you have in mind on turnstile barrier gate, we can help you to design and put it into production.
    4. Hight quality, fashion design, reasonable & competitive price, fast lead time.



    FAQ:

    Q1. What is your terms of packing?
    A: First, we will pack our goods by protective film. Then we will put it in a neutral cartons. Third,we will pack it in standard
    export wooden case to protect the goods perfectly.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the
    balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU etc.

    Q4. How about your delivery time?
    A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and
    the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We offer sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.
