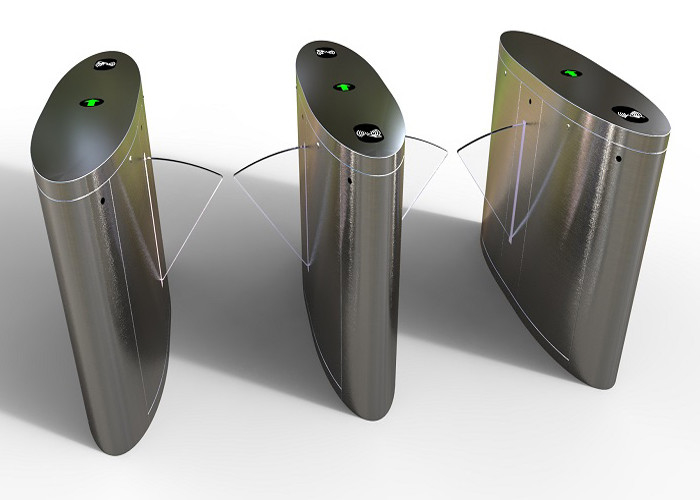

RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier

RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier

    • RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier
    • RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier
    • RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier
  • RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Infrared Photocell: Yes Flap Length: 27cm
    Size Of Housing: 1200*300*1000mm Flap Opening / Closing Time: 1s
    Working Temperature: -20°C~60°C Reset Time When Power On: 3s
    Control Voltage: DC24V Material: SS304
    Material Thickness: 1.2mm To 1.5mm
    High Light:

    Facial Recognition Flap Gate Barrier

    ,

    RS485 Flap Gate Barrier

    ,

    304 Stainless Steel Flap Turnstile

    Facial recognition factory price digital bus station 304 stainless steel flap gate barrier





    Specifications



    Model SN-FB03
    Dimensions 1200*300*980mm ( L*W*H)
    Material 304# stainless steel
    Channel width 600mm
    Pole length 270mm
    Control method Fully automatic
    Control direction Bi-directional
    Alarm anti-pinch illegal intrusion, trailing alarm function
    Passing speed 30 people / minutes
    Working power AC 110V /  AC 220V
    Use environment Indoor, outdoor
    Communction method TCP/IP or RS485
    Acrylic wing color Red, blue and clearly by choice





    Features of Flap Barrier Gate



    1.With fault self-test and alarm prompt function, convenient for user maintenance and use.



    2.Through the built-in small push-pull on the main control board, device operating state can be programed.



    3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).



    4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes



    5.Anti-shock function, the arm is automatically locked when no open signal is received.



    6.Telescopic arms are adjustable synchronously (for double pendulum)



    7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.



    8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)



    9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.



    10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.



    11.Voice prompt function.



    12.Remote control and management can be achieved directly through the management computer.

    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 0



    Advantages



    1. Control board

    The gear rotation system is used to lock the gate in the zero position, the unlocking is more stable and reliable, the function is complete, the door control and the consumption function are provided, and the gate can be controlled at the same time, no external consumption system is needed.

    2. Card window

    With a variety of working modes, you can both swipe in and out in both directions, and you can swipe the card while the other button is open.

    3.Acrylic Wing Arm

    The system will automatically reset the gate when the gate is not open within the specified time after opening the gate to ensure the safety of the channel.



    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 1



    Product photo



    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 2

    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 3





    Production details



    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 4

    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 5

    Case of Flap Barrier Gate



    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 6



    RS485 304 Stainless Steel Facial Recognition Flap Gate Barrier 7
