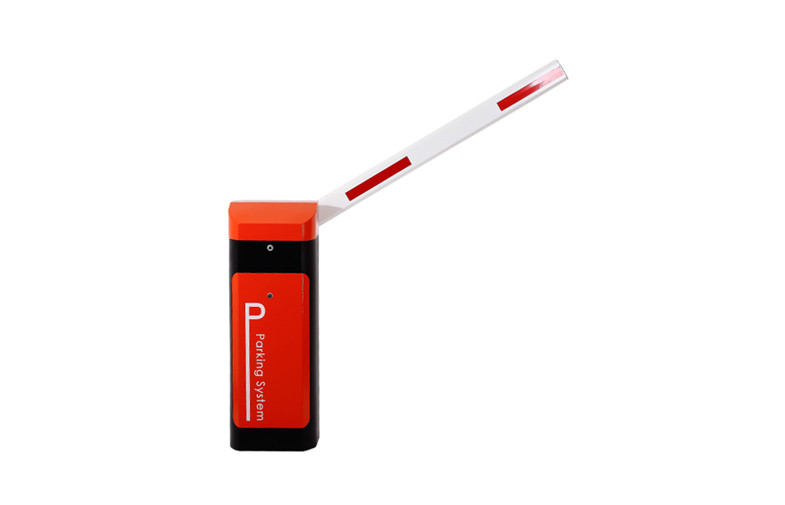

24v DC Motor 140W 1400rpm 6m Arm Boom Barrier Gate
  • 24v DC Motor 140W 1400rpm 6m Arm Boom Barrier Gate
  • 24v DC Motor 140W 1400rpm 6m Arm Boom Barrier Gate

24v DC Motor 140W 1400rpm 6m Arm Boom Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG132-DC
Product Details
Housing Color:
Red/grey/blue
Power Supply:
220V/110V ±10%/ DC24V
Frequency:
50/60HZ
Power:
140W
Time For Up/down:
1.5~6s (adjustable)
Protection Grade:
IP 54
Working Temperature:
-35℃~+85℃
Lenght Of Arm:
1m To 6m
High Light:

1400rpm Boom Barrier Gate

,

140W Boom Barrier Gate

,

6m Arm Vehicle Barrier System

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000 pcs per month
Product Description

Vehicle Traffic Control 24v DC brushless Motor For Boom Barrier Gate Barrera Automatica



GENERAL DESCRIPTION



Thank you for purchasing the 2nd generation brushless barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .



GENERAN FEATURES



1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)



Technical parameters



Working temperature(motor) -35℃~+85℃
Rated voltage DC24V
Running speed 1.5s-6s
Rated curren 8.58A
Rated power 140W
No-load speed 1850rpm
Rated speed 1400rpm
Output Power 56.8N.m
Relative humidity ≤90%
Remote control distance ≤100M(in the open place)
IP Degree IP54
Place of origin SHENZHEN CHINA





PRODUC PHOTO





24v DC Motor 140W 1400rpm 6m Arm Boom Barrier Gate 0



The parameter for selecting the balance tension spring



Arm Type The Length of arm Selection Spring

Type



Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M>L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M>L≥3M (ø5.5x280)+(ø4.5x280)



PACKING LIST



1 pcs Vehicle Barrier gate
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs user manual



FEATURES



1.Mechanical and electrical integration:quickly assembly,easy maintenance.
2.Molding production:highprecision,fast efficiency and guaranteed quality.
3.Worm-gear secondary variable speed transmission:motor wheel design,gate opening by manually when power off,no blocking, no oil leakage,large torque,low noise,can normally operation at the temperature of minus 45 degrees,ets.
4.DC brushless motor desgin:low consumption, high efficiency,no overheat, wide speed adjustment.
5.Hall limit:Automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed.
6.Curved triple connecting rod structure,easy to adjust
7.Arm direction quickly interchanged:interchanged according to different directions on construction site,reduce inventory and capital pressure.
8.Special DC brushless controller:use integrated chip dirve, fast processing speed, large memory, powerful function;24V low voltage power supply, adapt to global voltage.
