Home ProductsAutomatic Barrier Gate

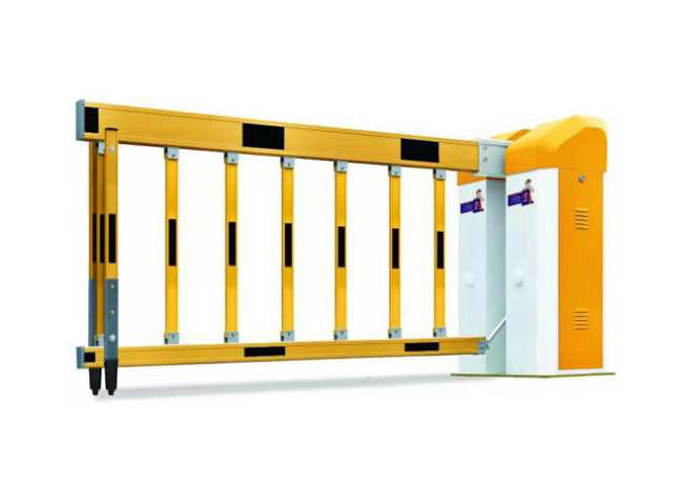

IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier

IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier

IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier
IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SJM-01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand: SINOMATIC Power Input: AC220/AC110 50/60HZ
Rated Power: 250W Opening/Closing Time: 9s
Box Weight: About 110kg Box Dimension: 457*686*1275mm
IP Rate: IP44 Arm Lenght: Max 6m
Arm Height: 1168mm
High Light:

IP44 Parking Gate Barrier

,

250W Parking Gate Barrier

,

Fencing Boom Entrance Barrier Gate

250W rate power AC copper motor fencing boom heavy duty airborne automatic parking gate barrier



AIRBORNE BARRIER GATE INTRODUCTION



A boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.


As a manufacturer, we have more than 10 years experiences on designing, producing and installing boom barriers. The result is a superior boom barrier with best after after-sales service.


Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span. With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.









AIRBORNE BARRIER GATE SPECIFICATIONS





Working temperature -30~+80 Humidity 95%
Voltage AC 220V+10%,50HZ Dimension 457*686*1275mm
Motor power 250W Operation time 9s
Remote control distance 30m Arm center height 1050mm
Optional Color yellow/red/Grey/White Arm top height 1168mm
Boom length 0-6m Communication Interface RS485 electrical standards





AIRBORNE BARRIER GATE GENERAL FEATURES AND FUNCTIONS



1. The box is waterproof, durable and can be used in outdoor environments. closed fence barriers prevent people from crossing casually.



2. the box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for more than three years.



3. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.



4. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.



5. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/windproof of the gate.



6. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.



7. Integrating light, electricity and mechanical control, flexible operation, convenient and reliable.



8. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which make the barrier have automatic closing and perfect anti-smashing function.



9. It has the function of opening the gate priority, which can effectively improve the efficiency of the vehicle passing through the channel.



10. The system uses a standard electrical interface externally, which can be easily attached to other systems selected by the user.



DIFFERENT ARM MODEL

IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier 0



IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier 1



AIRBORNE BARRIER GATE APPLICATION

Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.



AIRBORNE BARRIER GATE OPTIONAL COLORS

IP44 250W AC Copper Motor Fencing Boom Parking Gate Barrier 2
