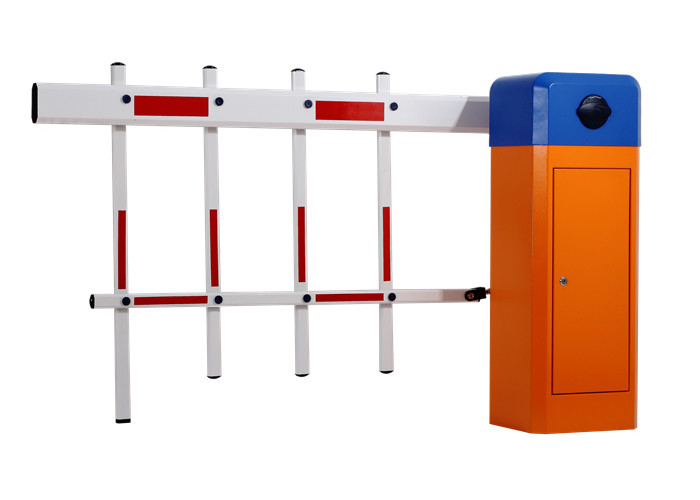

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

    • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate
    • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate
    • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate
    • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate
    • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate
    • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate
  • Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BG102

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000 pcs per month
    Contact Now
    Detailed Product Description
    Brand: SINOMATIC Motor: AC Motor
    Material Thickness: 2mm Carbon Steel Arm Length: Max 6m
    Boom Type: Straight, Folding And Fencing Warranty: 2 Year
    Speed: 1s, 1.8s, 3s, 6s Voltage: 220V/110V
    Rated Power: 120W Control Mode: Remote Control, Wire Control
    High Light:

    120W Automatic Barrier Gate

    ,

    6m Boom Automatic Barrier Gate

    ,

    Fencing Boom Traffic Barrier Gate

    5 Million Lifetime AC220V/110V heavy duty Orange blue color boom barrier gate



    Introduction



    This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.







    Technician specification



    Product Name Traffic Barrier Boom Gate/Parking Barrier Gate
    Model Nuber SN-BG102
    Operation Time 1s,1.8s,3s,6s
    Arm Type Straight arm,fence arm,folding arm
    Rating Voltage AC220V/110V±10%,50/60HZ
    Power Supply 120W
    Size 320*280*920mm(L*W*H)
    Material 2.0mm thickness cold roll steel sheet
    Remote Control Distance ≥30meters
    Working Temperature -35℃ to +75℃
    Packing

    1030*380*450mm,with seven layers carton size

    inside with air bubble film for protection

    Delivery

    By sea:big order(more than 100 sets) cheap,suggested

    By Air or Express: sample order,quick and cheap,suggested

    Payment T/T,Western Union,Moneygram, Credit card,Cash(according to your requirement)
    MOQ 1 set





    Production photo



    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 0



    Details:



    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 1

    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 2



    DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE



    Model No. (BG) Open/Close Speed Max Boom Length Boom Type
    102-16 6 sec 6m straight boom
    102-13 3 sec 4.5m straight boom
    102-11 1 sec 3m straight boom
    120-26 6 sec 5m 90 degree,Articulated boom
    102-23 3 sec 3m 90 degree,Articulated boom
    102-36 6 sec 5m 180 degree,Articulated boom
    102-33 3 sec 3m 180 degree,Articulated boom
    102-46 6 sec 4.5m Two-level, fence boom
    102-56 6 sec 4m Three-level, fence boom





    MACHINE CORE DIAGRAM



    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 3



    MAIN RELEASE CLUTCH

    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 4



    CONTROL BOARD



    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 5



    PRODUCT ACCESSORIES

    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 6



    FUNCTIONS & FEATURES



    1. For security, the barrier will automatically go back when meet obstacles during closing.



    2. Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.



    3. All the operation process is soft without any noise and shaking.



    4. Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.



    5. Green light and red light are used inside for indication the position of the beam.



    6. Manual release device to operate the barrier when power failure.



    7. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.



    8. Motor cooling fan to avoid the over-heating possibility.



    9. Auto closing realization through menu setting on the control panel.



    10.Wire control, remote control optional



    11 Infrared protection (requires correlation infrared device)



    CASE DISPLAY

    Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate 7





    FAQ



    Q: What's your monthly production capacity for barrier gate?

    A: 1000 units.

    Q: What is the warranty for the machine?

    A: 12 months.

    Q: When will you make the delivery?

    A: In general, Regular products: 2-7 days.

    Q: How does your factory control the quality?

    A: Quality controlling from the beginning to the ending.

    Q: What is your MOQ?

    A: Any quantity is acceptable.

    Q: Payment term?

    A: 100% for sample. 30% deposit, 70% before delivery for volume order.
