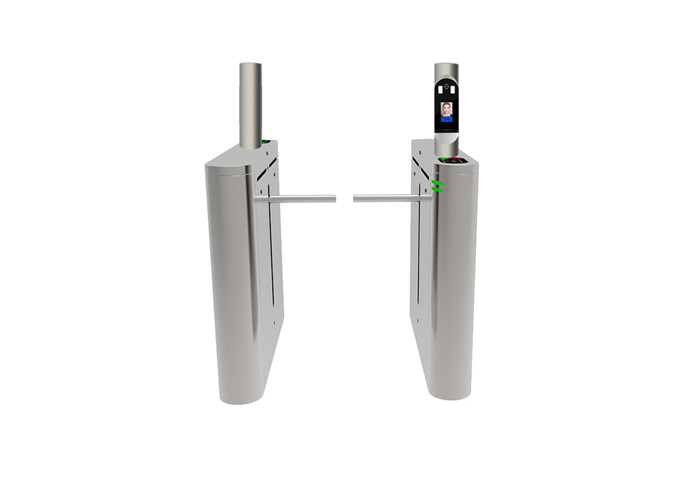

304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System
  • 304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System
  • 304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System
  • 304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System

304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Gate Opening / Closing Time:
1S
Gate Closing:
1S
OEM/ODM:
Supported
Arm Length:
450mm(default)
Direction:
Single Or Bi-direction
Size Of Housing:
1200*165*1000mm
Max Flow Rate:
30 Person Per Minute
Material:
SS304(SS316)
Material Thickness:
1.2mm To 1.5mm
High Light:

304 Stainless Steel Drop Arm Gate

,

Face Recognition Drop Arm Gate

,

Optical Arm Drop Turnstile SS304

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

Entrance High definition Face recognition System 304 Stainless Steel Drop Arm Gate



GENERAL DESCRIPTION



The SINOMATIC optical turnstile has a slim profile and a stylish design that enhances any access control installation.

With tandem motorized drop arms that quickly move down and into the cabinet, and the latest in optical detection technology, the SINOMATIC optical turnstile is an excellent solution for your entry control requirements.



PRODUCT DIMENSION



304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System 0



FEATURE & FUNCTIONS



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function.

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gates)

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).

9. Direction can be set as uni-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Support infrared photocell for anti-pinch and reset function



TECHNICIAL SPECIFICATIONS



Model

SN-DAB02

Brand

SINOMATIC

DImension

1200*160*980(mm)

Arm length

250-500mm

Material

SS304 thickness(1.2mm)

Input Voltage

AC110-220±10%,50HZ60HZ

Driving motor

24V

Failure-free operation

5 million/time

Weight

45kg

Traffic speed

25-35 persons/min

Flap Opening/Closing Time

1s

Channel width

≤600mm

Operating temperature

-30℃—+70℃

Working environment

indoor and outdoor





CASE REFERENCE



304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System 1



304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System 2



APPLICATIONS


1. Station, dock, site, school, supermarket entrance control management
2. Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
3. Enterprises and institutions attendance, access control, consumption entrance and exit control management
4. Special channel access control

304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System 3
