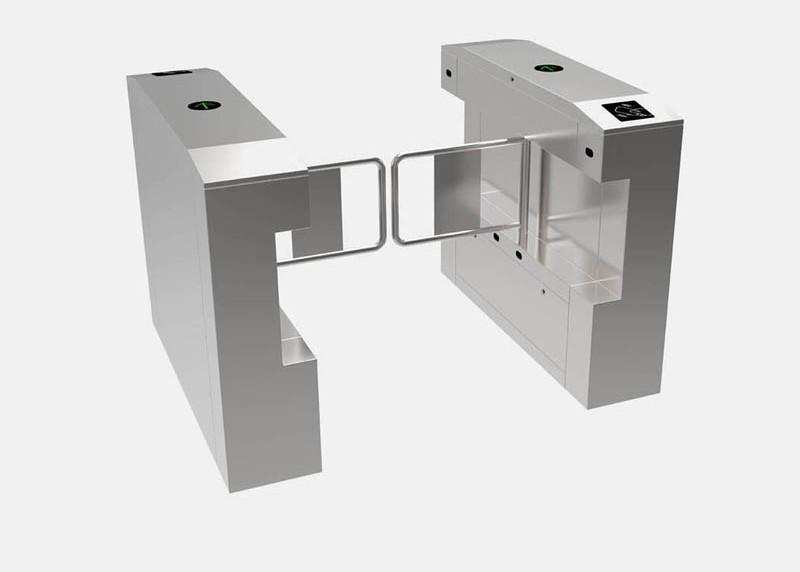

IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System

IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System

    • IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System
    • IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System
    • IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System
    • IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System
  • IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SB03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Arm Material: 10mm Thickness Acrylic Housing Material: 1.2mm SUS304
    Working Temperature: -20°C~60°C Passing Speed: 30 Person/minute
    LED Indicator: Both Direction Warranty: 1 Year After Delivery
    Arm Lenght: 530mm Default Max Arm Lenght: 830mm
    Motor: Brushless DC Motor Motor Voltage: DC24V

    Indoor and outdoor IP 54 swing arm Access control barrier swing security gate



    PRODUCT APPLICATION


    1. Swing barrier gate are compact and cost-effective entrance solutions.
    2. The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
    3. Swing barrier gate is ideal for indoor and outdoor.
    4. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
    6. In case of emergency, the Swing gate will open when power off.
    7. It is suitable for most of places



    PRODUCT DISPLAY









    TECHNICIAN SPECIFICATION



    1

    Power

    AC220V/110V±10%, 50/60HZ;

    2

    Operating Temperature

    -45℃-60℃

    3

    Relative Humidity

    ≤95%, No Condensation

    4

    Passage Width

    600mm( 1000mm optional)

    5

    Passing Speed

    Normally open-50 persons/min; Normally closed-30 persons/min

    6

    Manufacturing Technique

    CNC laser cutting

    7

    Motor

    DC Brushless motor, 140W/24V

    8

    Gate Opening and Closing time

    ≤ 0.4S

    9

    Infrared Sensors

    included

    10

    Working environment

    indoor and outdoor(added the rainshed )

    11

    Motor Operation Speed

    1600R/Min

    12

    Communication Distance

    1200M

    13

    Input Connection

    +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms

    14

    Communication Connection

    RS485 Communication

    15

    Barrier Material

    Acrylic glass, SS304 and so on

    16

    Material

    Stainless steel 304,thickness is no less than 1.2mm







    IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System

    IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System




    PRODUCT DIMENSION

    IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System





    FEATURES & FUNCTIONS



    1. Swing Barriers is made from stainless steel, acrylic glass, etc; Mechanical Anti-Pinch structure enable

        motor to stop working automatically in given time if there is something on the way during reset, and reset

        again after default time delay



    2.Automatic counting indicating passenger’s number.



    3.Human base model indication function, real time displaying, improve the passing rate and convenient maintainence.



    4.Anti pinch function, barriers auto open when power shut, insure user safety.



    5. Break-in, tail, over-pass and reverse alert function in order to keep orderliness and effective manage



    6.Super combination capacity, adjustable model on site



    7.Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient

       users and operators



    8.Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage

       the integrated systems through the remote PC.



    9.Turned up-coverage is water-proof and easy maintainence.



    CASE REFERENCE



    IP54 Pedestrian Swing Gate Single / Double Opening Biometric Device Control System
