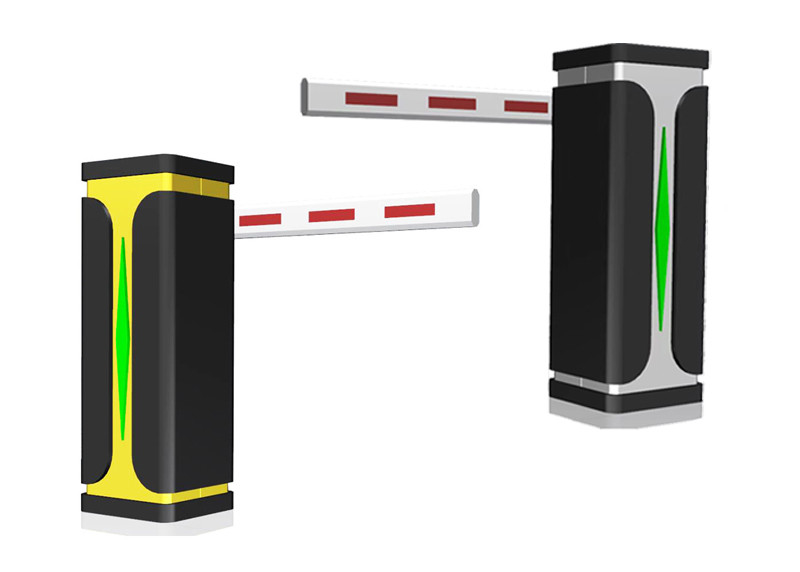

0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor

0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor

    • 0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor
    • 0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor
    • 0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor
    • 0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor
  • 0.6~6s Adjustable Speed Automatic Gate Barrier System 0~6m Boom Dc Brushless Servo Motor

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BG-S10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Housing Dimension: H1000*L360*W300mm Opening Speed: 0.6s, 0.9s (both Can Adjust To 6s)
    Motor Rated Power: 100w Duty Cycle: 100%
    Input Voltage: 220V/110V ±10%, DC24V/12V Frequency: 50Hz/60Hz
    IP Rate: IP 54 Drive System: DC Brush-less Servo Motor
    Housing Material: Mild Steel Housing Thickness: 2mm

    0.6~6s adjustable speed 0~6m boom dc brushless servo motor automatic gate barrier system





    PRODUCT DESCRIPTION



    This Arm Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving

    access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition

    center, hospitals, airport etc. Thanks to DC motor, solar panel can be backup power supply.





    PRODUCT SPECIFICATIONS





    S10 barriere gate Technical Specification
    Max .Straight Arm 2.5m 3m 4.5m 6m
    Opeing time (Sec) 0.6 0.9 1-3 2-5
    Speed rang 0.6s-6s
    Motor rated Power 100W
    Duty cycle 100%
    Supply voltage 220V,Or DC24V/12V
    Frequency 50Hz/60Hz
    Drive system SFMCU
    Housing Dimensions 1000*360*300MM
    Weight (without boom) Mechanism :25kgs
    Gate :45kgs
    Protection class IP54
    Temperature range under 35 to 70 °C







    PRODUCT FUNCTIONS & FEATURES



    1. NO SENSOR&LIMIT SWITCH

    Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.

    Four main parts only, mechanical, motor, control unit, power supply.



    2. MAINTENENCE FREE

    DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon

    brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long termusage.

    And no other smaller parts need to be maintain too.



    3. 24/7 CONTINUS OPERATION

    With a very smooth and quiet motorized drive mechanism, Open

    and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.



    4. SPEED ADJUSTABLE

    Our DC servo barrier gate allows you to set opening and closingspeed according to requirements. Shorter arm,

    the faster speed can be set.



    5. AUTO-REVERSE FUNCTION

    When arm falling and meets obstacles, arm will auto reverse to prevent further damages.



    6. MULTIPLE INTERFACES

    6.1. Wire Control Signal Input(open&close&stop)

    6.2. Infrared Photocells

    6.3. Loop Detector

    6.4. R&G Light signal (Up&Down Limit signal output optional),

    6.5. can use for counting purpose also

    6.6. Arm Presence Detection(Optional)

    6.7. RS485 Communication(Optional)

    6.8. More If Required



    7. EASY INTEGRATION

    Access Reader or Push button or remote controller can be used totrigger the barrier gate to open via a

    simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain

    time(optional function)



    8. USER FRIENDLY

    Motorized arms provide comfortable passage while maintaining ahigh level and high density of car flow

    management, such as in toll gate.



    9. AUTO-RECOVERY

    When power off, barrier arm can be lifted up by manual for a freeexit. When power supply is restored,

    Barrier gate will automatically return to close position.



    10. Auto Testing Mode

    Control board can set auto testing mode
