Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

China Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier
Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input supplier

Large Image :  Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Housing Lenght: 3m To 6m Blocking Length: 2.7m To 5.7m
System Power: 3.7KW Min. Loading: 80 Tons
Lifting Height: 500mm(default) Material Thickness: 16mm(default)/20mm/25mm
Power Supply: 380V Control Voltage: 24V
Service Lift: 5 Million Times

Anti-terrorist 3 phases 380V power input Electric Automatic LED light hydraulic security barriers

GENERAL DESCRIPTION


Road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that

have high security requirements. To control the vehicle access in high security application and traffic control system,

hydraulic road blockers are the unique solution and the most secure equipment. Even though the attack is from high

tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given

to front, wheels , rims and the bottom of the vehicle.


Automatic road blockers provide a highly secure method of protecting a roadway against vehicular entry, offering an

extremely overt visual deterrent which matches it’s ability to stop any road vehicles attempting to gain unauthorized

access to your site. It can be widely used for high security applications such as custom house, border, port wharf,

airport, prison, nuclear plant, military sites, government office building, high industrial risk factory and other sensitive places.






PRODUCT PARAMETERS


Product Name Hydraulic Road Blocker
Model No. SN-HRB02
System Control Electro-hydraulic
Material Q235 carbon steel (A3 steel)
Panel Thickness 16mm(default)
Operating Temperature -35℃~75℃
Protection Level IP68
System Dynamic Power 3.7-5.5KW
Intercepting Height 500mm
Size L3000*W1000*H760mm(default)

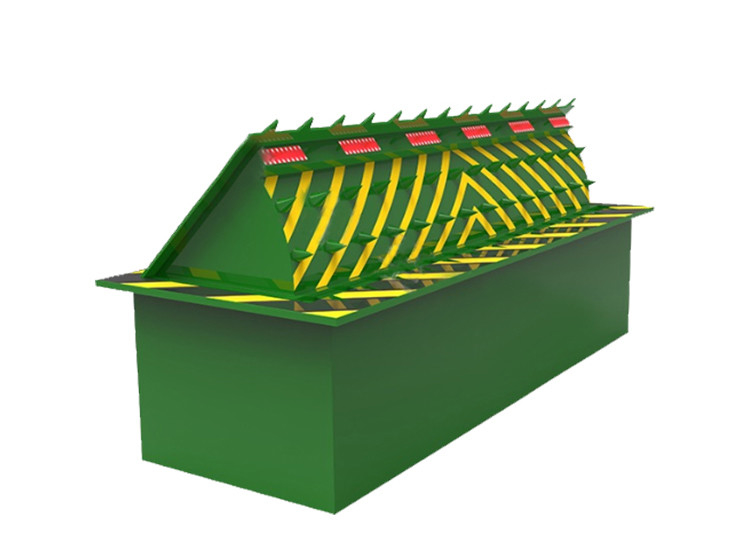

PRODUCT DISPLAY


Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input



OPTIONAL COLOR

Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

COMPONENTS

Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

FEATURES & FUNCTIONS


1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v



PRODUCTION PHOTO

Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

OPTIONS


1. Access control and systems
2. Emergency buttons with lock down
3. UPS backup for the electrical system
4. STOP / NO Entry warning signs
5. Accumulator systems for hydraulic operation in power failure conditions
6. Inductive loop systems
7. Traffic lights and back-indications systems

CASE REFERCE
 Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input




Wireless Remote Control LED Light Hydraulic Security Barriers 3 Phases 380V Power Input

ABOUT OUR COMPANY


Sinomatic Technology is located in Shenzhen, China.Our manufacturing plant with approx. 4.700

square meter space, is equipped with modern production lines, own powder coating facility, developing

department, processing center.

Products are widely used in transportation road, schools, government agencies, airports, prisons, military,

customs, border control, parks,smart city and other fields.



Our aim is to use our knowledge, experience, manufacturing and design capacity, to be able to offer more

flexibility than other manufacturers, providing custom made solutions, within short lead time and with value

for money. Very resistant and durable products for reasonable pricing, variety of customization and system

integration options, are the focuses for our business. With excell performance in overseas market, our products

are exported to Europe, US,East Asia, Russia, the Middle East Islamic war countries etc.


Advanced technology is accompanied by highest international quality standard. Comprehensive design,

outstanding high technological standards together with superb corrosion protection, we gain trust of customers

all over the world. At the same we keep competitive price policy. Fast and dynamic growth of our company in recent

years and we're becoming better and better.
