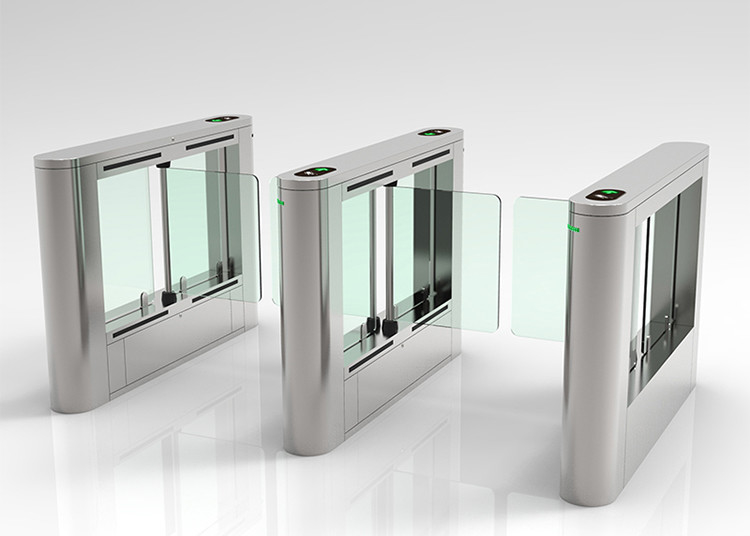

Bi Directional Pedestrian Swing Gate , Entrance Control System 0.5 Second Opening Time

China Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time supplier
Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time supplier Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time supplier Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time supplier Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time supplier Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time supplier

Large Image :  Bi Directional Pedestrian Swing Gate , Entrance Control System 0.5 Second Opening Time

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SB05

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 3-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Direction: 180 Degree Housing Material: SS304 Or SS316
Case Thickness: 2.0MM Application: Indoor/outdoor With Tent
Control Input: Dry Contact Warranty: At Least 12 Months
Arm Material: Acrylic Flow Rate: At Least 30 Person/minute
Working Temperature: -20℃-60℃ Passage Width: 600mm-900mm

Security Bi-directional 24 hours heavy duty use 0.5 second opening time Swing type Baffle Barrier



INTRODUCTION



Sinomatic swing barrier is an ideal passenger access management device produced by our company after

years of research and development. Our standard product, made of 304 stainless steel, integrating with

mechanism, electron, microprocessor an various identification technology, is able to achieve access

intelligent control and management by configuring all kinds of identification devices, direction indicator

and well-extended LED counting display.



Sinomatic Intelligent swing barrier is a brand-new product of our company. It has features of precise

craftsmanship, comprehensive functions and high reliability, which can be applied in high class

communities, intelligent buildings, hotels, subway stations, gym and other high level venues.





Description Parameters
Lane Width 500-900mm
IP IP54
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor drive
Max Power Consumption 40W
Opening time 0.5S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Working Environment -20°C~+60°C
Gross Weight 85KGS



PRODUCT DIMENSION

Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time





FUNCTIONS & FEATURES

  1. With function of self-examine and alarm,it is convinient for maintain and use
  2. Being able to program operation state by the small keyboard in the main board.
  3. Arm will stop moving when it is blocked, which prevents pedestrians from being nipped or from hurt.
  4. Arms are automatically locked until opening signal is received
  5. Arms synchronization(adjustable)
  6. Light and sound alarm is generated when the illegal invasion and the tail followed.
  7. Unit can be adjusted to normal open or normal close to meet different conditions.
  8. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
  9. The arms automatically open when power off and automatically close when power is on, which accords with fire-fighting requirement.
  10. It can be directly controlled or managed by remote computer

Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time



OPTIONS

  • Counter
  • Infrared reset function
  • Single direction or bi-direction are optional
  • Light and voice alarm function
  • The length of casework and arms are optional

Mode of operation

  • Card IN/Card OUT
  • Card IN/Free OUT
  • Free IN/Card OUT
  • Free IN/Free OUT

REFERENCE



Bi Directional Pedestrian Swing Gate ,  Entrance Control System 0.5 Second Opening Time
