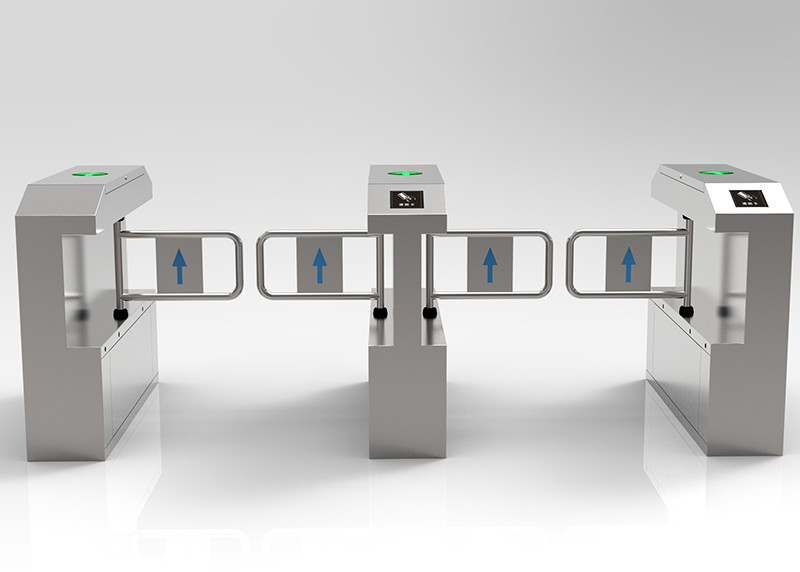

Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V

China Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V supplier
Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V supplier Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V supplier Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V supplier Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V supplier

Large Image :  Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SB03

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Arm Material: 10mm Thickness Acrylic Housing Material: 1.2mm Thickness 304/316 Stainless Steel
Working Temperature: -20°C~60°C Passing Speed: Max. 30 Person/minute
LED Indicator: Both Direction Warranty: 1 Year After Delivery
Arm Lenght: 530mm Default Max Arm Lenght: 830mm
Motor: Brushless DC Motor Motor Voltage: DC24V

Premium Building high Quality sus304 stainless steel automatic pedestrian barrier gate





FEATURES & FUNCTIONS



1. Can integrate with various types of access control system.



2. Trigger to open by dry contact. Automatic close back after auto timer elapsed.

Delay time can be programmed on swing barrier control panel.



3. Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed

access control reader to control swing barrier opening and closing time.



4. Support bi-directional opening



5. During power failure, swing barrier will automatically open up to allow free access.

When power resume, swing barrier will automatically close back to resume security level.



6. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed.

Clutch release reduce impact force to minimum in the event that gate closed onto passing users.

This also protect the motor and control panel from being damaged due to overload.



7. Safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way.

This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.



8. Gate length can be easily customized to fit site requirement.



9. Auto synchronized opening when 2 swing barriers are installed for the same passage.

Both side will open and close at the same time.



10. Gate motor mechanism is self lock at open and close position.





GENERAL DESCRIPTION



The whole product appearance using SUS304 stainless steel plate stamping forming, intelligent swing gate can easily compatible with IC card, ID card, barcode card, fingerprint and other card identification equipment, to provide a civilized, orderly way, effective management of people in and out. Can be widely used in the station, wharf, subway, factories, buildings, intelligent residential, hotels, clubs, enterprises and institutions need to realize the intelligent management of the channel.



This product is divided into: Single Movement: for single channel and multi-channel; dual movement: for multi-channel



Description Parameters
Lane Width 530 to 830mm (single)
IP IP54
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor drive
Max Power Consumption 40W
Opening time 0.5S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Outside packing 130x40x115cm
Working Environment -20°C~+60°C
Gross Weight 85KGS





PRODUCT DIMENSION

Premium Building Automatic Pedestrian Barrier Gate Sus304 Stainless Steel DC 24V
