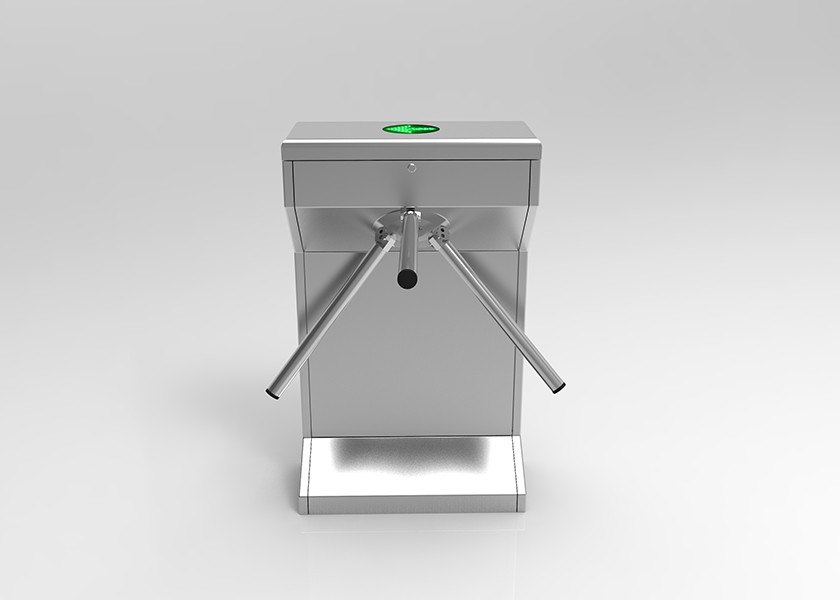

Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile

Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile

    • Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile
    • Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile
    • Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile
    • Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile
  • Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TT01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Max Flow Rate: 25 To 30 Person Per Minute Working Temperature: -20°C~60°C
    Working Humidity: 0~95%RH Material Of Housing: SS304
    Application: Indoor/outdoor With Tent Thickness Of Housing: 1.2mm To 1.5mm
    Control Voltage: DC24V Input Voltage: 220V/110V
    Control Signal: Dry Contact

    Automatic 304 Stainless Steel Drop Arm Vertical Stand-up 3 million time MCBF Waist Height Tripod Turnstile



    Introduction of Tripod Turnstile Gate:



    304 stainless waist height tripod turnstile gate is an pure mechanical turnstiles. Its unique mechanical

    drive design no need any expensive electric motor. The tripod turnstile direction can be set as single direction

    or double direction, depends on the purpose of the access control.



    Applications of Tripod Turnstile Gate:



    304 stainless waist height tripod turnstile gate is suitable for many locations. They are optimized

    economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges,

    commercial building etc.





    Description Parameters
    Lane Width 550mm
    IP IP54
    Pass Speed 30 persons/min
    Power supply AC220V/110V,50/60Hz
    Drive Mode Motor Free
    Power Consumption 40W
    Opening time 0.6S
    Humidity ≤90% coagulation free
    Noise ≤50dB
    Service Life 5,000,000 cycles
    Outside packing 58x38x116cm
    Working Environment -20°C~+60°C
    Gross Weight 40KGS



    Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile





    Features of Tripod Turnstile Gate:

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.





    CASE REFERENCE



    Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile



    Drop Arm Tripod Turnstile Gate , Vertical Stand Up Waist Height Tripod Turnstile



    Why choose us:



    1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier and road blocker.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
