|Power Supply:||AC 220V/ AC110V ± 10%||Frame Material:||SS304|
|Transit Speed:||25~30 Person Per Min||Thickness Of Frame:||1.2 To 1.5mm|
|Arm Length:||500mm To 550mm||Arm Sections:||4 Sections (90 Degree)|
|Width Of Passage:||550mm To 600mm||Package:||Wooden Box|
|Control Voltage:||DC24V||Surface Treatment:||Brushed|

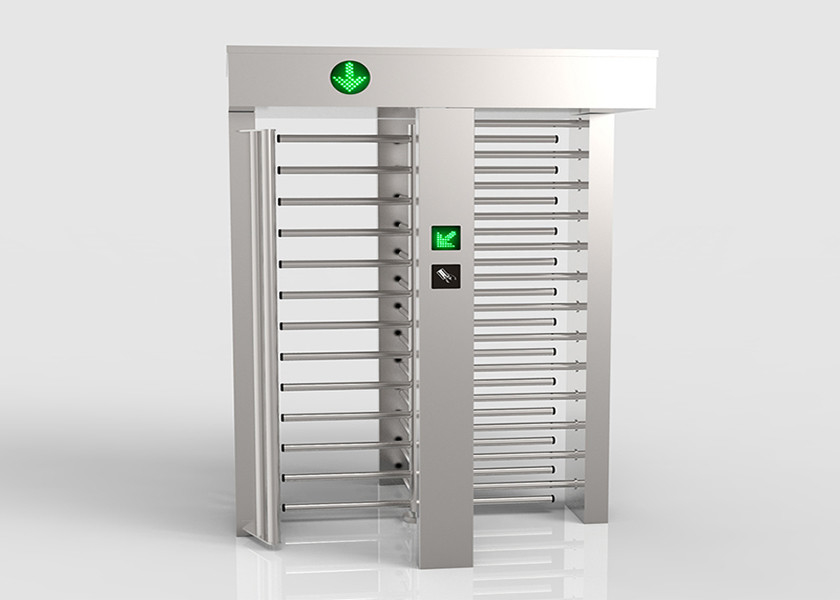

90 degree Rotating Bi-directional Full height Turnstile Gate With Biometric Fingerprint Rfid Card Reader
The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised
access control for office or building which realize intelligent pedestrian control and management. .
The impenetrable construction eliminates any un-authorized access to restricted areas.
To gain authorized passage through the turnstile, the user must present a valid card for the access control system.
Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested.
And the turnstile can also work with push button, fingerprint and face recognition access control system.
This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .
|Pass Speed||25-30 persons/min|
|Drive Mode||Motor free|
|Max Power Consumption||200W|
|Humidity||≤90% coagulation free|
|Service Life||5,000,000 cycles|
Functions & Features
1) Low noise mechanism core equipped, highly cost-performance
2) Operating efficiency, less than 1 second open & close time
3) Self-checking and Alarm warning for maintainence
4) Resetting: System cancel authorized pass if passenger delayed pass
5) Anti-following : prevent illegal passing
6) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
7) The rotary wings will be locked automatically if the person do not
8) Multi-passage for variety application demands
9) Programmable signal separate control : pass time,pass speed etc. parameter
10) Compatible with RFID card reader, fingerprint reader, facial recognition system (access controller needed)
11) Long-distance management through COMPUTER (Access controller needed)
12) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
Control & Interfaces optionals
1, Card readers
2, Metal detection
3, Electronic/LCD counters
4, Fail-open or fail-secure locking
5, Push-button and wireless remotes
6, Manual key override both directions
7, Indicator lights
How full height turnstile access control system works
