Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable

Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable

    • Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable
    • Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable
    • Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable
    • Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable
  • Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Max Power Consumption: 200W Wing Length: About 27cm
    Opening / Closing Time: ≤1s Working Temperature: -20°C~60°C
    Reset Time When Power On: ≤3s Control Voltage: DC24V
    Shell Material: 304 Stainless Steel Power Supply: AC220V/110V
    Dimension: 1200*280*980 Mm Passage Width: 550mm (One Passage)

    IP54 30 person/minute passing speed retractable DC24 Brushless Motor Drive flap barrier turnstile

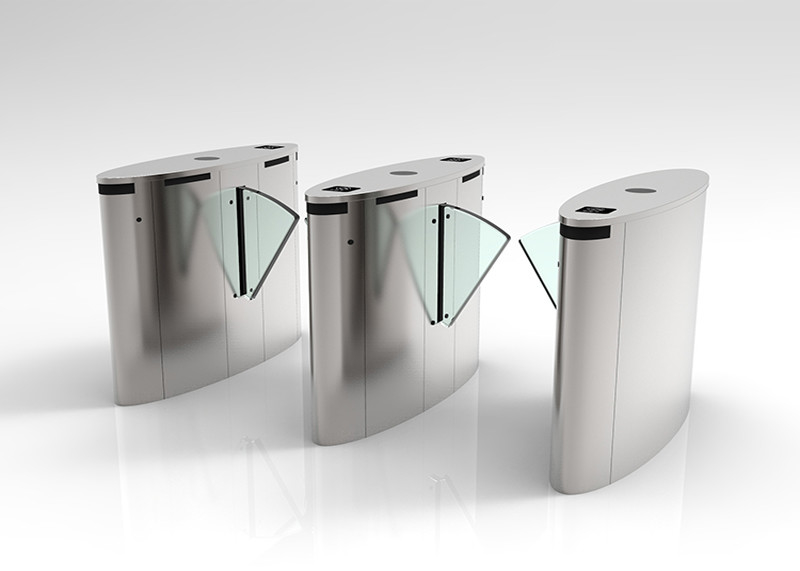

    Introduction of Flap Barrier Gate



    Sinomatic flap barrier gate integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligetilized control and management.



    Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable



    Description Parameters
    Lane Width 550-600mm
    IP IP54
    Pass Speed 30 persons/min
    Power supply AC220V/110V,50/60Hz
    Drive Mode Motor drive
    Max Power Consumption 200W
    Opening time 0.4S
    Humidity ≤90% coagulation free
    Noise ≤50dB
    Service Life 5,000,000 cycles
    Outside packing 130x40x116 cm
    Working Environment -20°C~+60°C
    Gross Weight 100KGS



    Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable



    PRODUCT DIMENSION

    Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable



    Features of Flap Barrier Gate



    1.With fault self-test and alarm prompt function, convenient for user maintenance and use.



    2.Through the built-in small push-pull on the main control board, device operating state can be programed.



    3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).



    4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes



    5.Anti-shock function, the arm is automatically locked when no open signal is received.



    6.Telescopic arms are adjustable synchronously (for double pendulum)



    7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.



    8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)



    9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.



    10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.



    11.Voice prompt function.



    12.Remote control and management can be achieved directly through the management computer.



    Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable





    Case of Flap Barrier Gate



    Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable



    Multi Lanes Flap Barrier Turnstile IP54 30 Person / Minute Passing Speed Retractable
