Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor
  • Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor
  • Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor
  • Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor
  • Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor
  • Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor
  • Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor

Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Arm Opening / Closing Time:
1S
Arm Closing:
1S
OEM/ODM:
Supported
Arm Length:
450mm(default)
Direction:
Single Or Bi-direction
Size Of Housing:
1200*165*1000mm
Max Flow Rate:
25 To 30 Person Per Minute
Material:
SS304
Package:
Wooden Box
High Light:

Slim Profile Drop Arm Turnstile

,

SS304 Cabinet Drop Arm Turnstile

,

Brushless Motor Remote Control Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

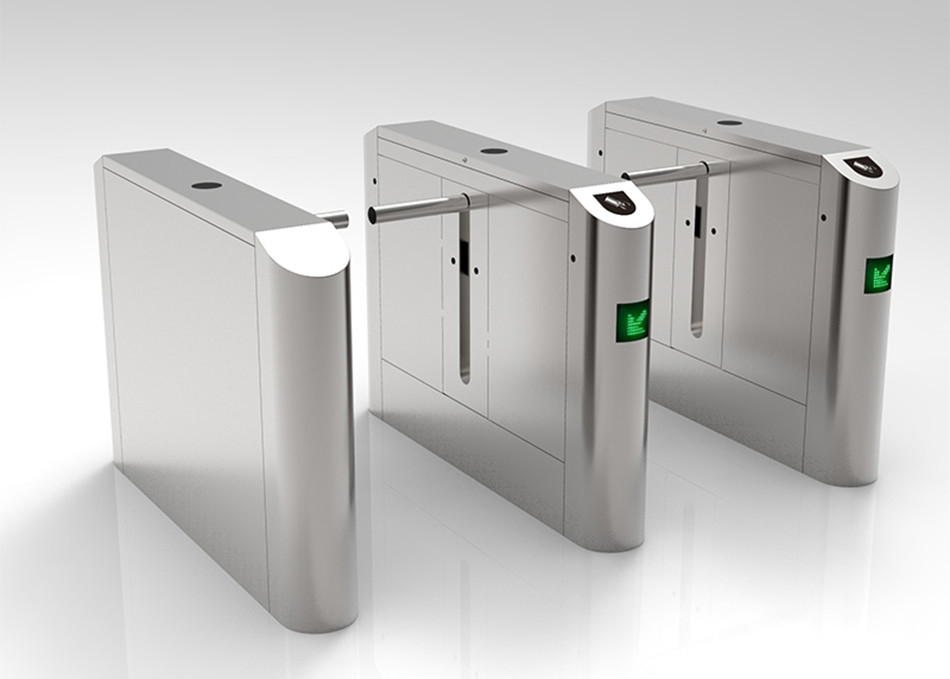

Slim profile and stylish design SS304 cabinet remote control brushless motor drop arm turnstile



Introduction of Drop Arm Turnstile:



The SINOMATIC optical turnstile has a slim profile and a stylish design that enhances any access control installation.

With tandem motorized drop arms that quickly move down and into the cabinet, and the latest in optical detection technology, the SINOMATIC optical turnstile is an excellent solution for your entry control requirements.







Features & functions



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function.

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gates)

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).

9. Direction can be set as uni-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Support infrared photocell for anti-pinch and reset function



Specifications of Drop Arm Turnstile:



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
40W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
25 to 30 person per minute
Housing dimension 1200x165x1000mm
Arm length
450mm(default)
Working temperature
-20°C~+60°C
Current
3A
Control circuit
DC24
Working humidity
0~95%RH
Time of opening or closing
less than 2S
Normal life 5 million times



Cases reference



Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor 0

Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor 1



Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control

Slim Profile Drop Arm Turnstile SS304 Cabinet Remote Control Brushless Motor 2



Why choose us:



1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
