Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole

China Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole supplier
Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole supplier Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole supplier Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole supplier Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole supplier Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole supplier

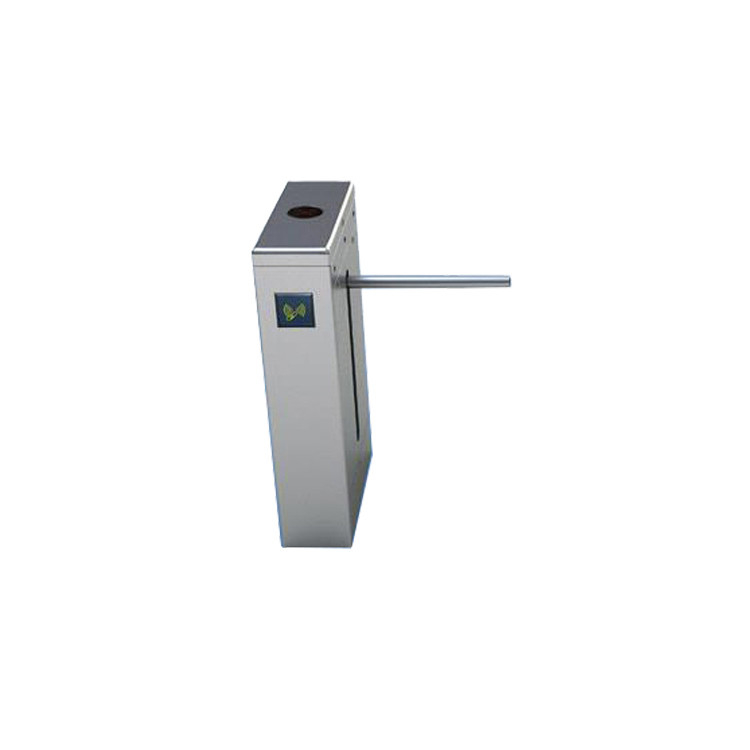

Large Image :  Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-DAB01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
OEM/ODM: Supported Arm Length: 450mm(default)
Direction: Single Or Bi-direction Size Of Housing: 600*260*1000mm
Max Flow Rate: 25 To 30 Person Per Minute Material: SS304
Package: Wooden Box Motor: 24V DC
Surface Treatment: Wire Drawing

Anti-Collision Bi -directional RFID Card reader Single Pole Drop Arm Turnstile gate

I

ntroduction of Drop Arm Turnstile:



The one arm barrier is mainly for people in large places to implement the entrance and exit control management of high-tech products,Its appearance with stainless steel profiles, fine craft, full-featured, small appearance, anti-rust, durable, able to resist external damage,The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control attendance system, parking system, face recognition system, anti-static, fingerprint, palm, iris and other biometric identification system integration and use.



Features & functions



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function.

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gates)

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).

9. Direction can be set as uni-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Support infrared photocell for anti-pinch and reset function



DIMENSION

Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole



Specifications of Drop Arm Turnstile:



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
40W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
25 to 30 person per minute
Housing dimension 1200x165x1000mm
Arm length
450mm(default)
Working temperature
-20°C~+60°C
Current
3A
Control circuit
DC24
Working humidity
0~95%RH
Time of opening or closing
less than 2S
Normal life 5 million times



Production line

Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole

Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole

Cases reference

Anti Collision Security Turnstile Gate Bi Directional RFID Card Reader Single Pole



Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control





Why choose us:



1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
