    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-DAB02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Arm Opening / Closing Time: 1S Arm Closing: 1S
    OEM/ODM: Supported Arm Length: 450mm(default)
    Direction: Single Or Bi-direction Size Of Housing: 1200*165*1000mm
    Max Flow Rate: 25 To 30 Person Per Minute Material: SS304

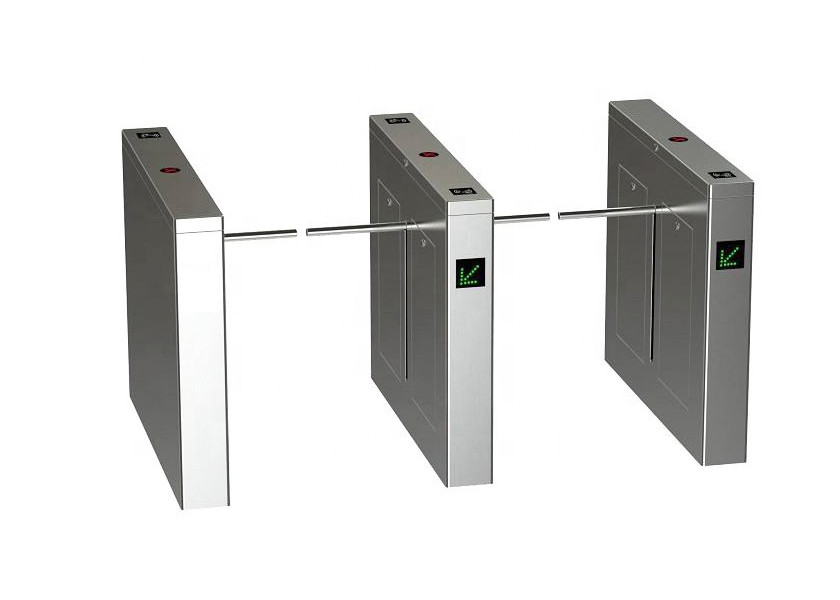

    Flow control access control system fingerprint / face recognition SS304 drop arm gate



    Introduction of Drop Arm Turnstile:



    Sinomatic intelligent drop arm turnstile can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff.



    Applications of Drop Arm Turnstile:



    Can be widely used in the station, wharf  subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



    Features & functions



    1. Fault detection and alarm functions, easy to use and maintenance.

    2. The running status can be programmed and controlled with the built-in keyboard on the main board.

    3. Mechanical anti-pinch function.

    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

    5. Synchronization functions (for dual gates)

    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    7. Gate can be set as normally open or normally closed.

    8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).

    9. Direction can be set as uni-direction or bi-direction.

    10. LED direction indicator.

    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13. Support infrared photocell for anti-pinch and reset function



    Specifications of Drop Arm Turnstile:





    Product Specs
    Power supply
    AC220±10%V 50Hz/AC110±10% 60Hz
    Power consumption
    40W
    Access device input voltage
    Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
    Max flow rate
    25 to 30 person per minute
    Arm length
    450mm(default)
    Working temperature
    -20°C~+60°C
    Current
    3A
    Control circuit
    DC24
    Working humidity
    0~95%RH
    Time of opening or closing
    less than 2S



    Cases of Drop Arm Turnstile:

    Flow Access Control Turnstile Barrier Gate Fingerprint Face Recognition System With Single Arm



    Why choose us:



    1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
