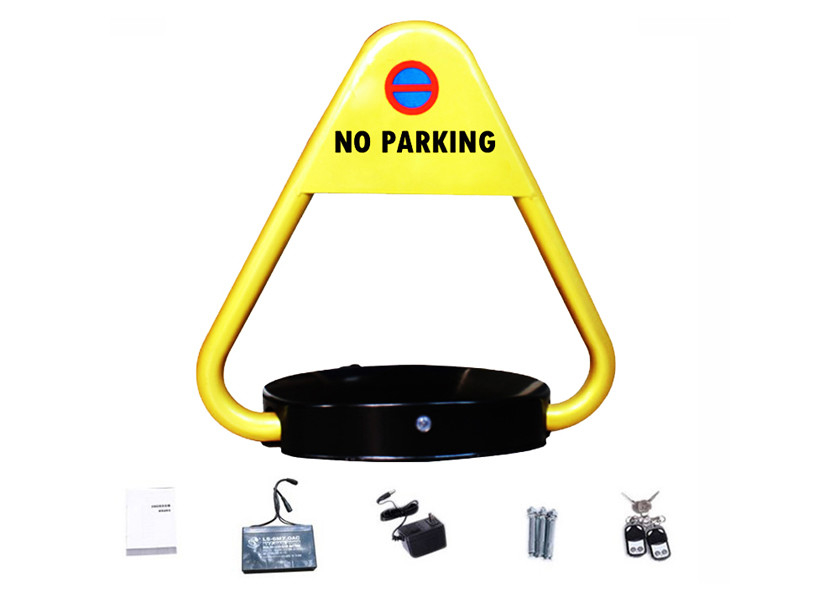

Car Parking Lock
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BW-9 |
Quality Assure Waterproof Smart Remote Control Car Parking Barrier Manufacturer
Features of car parking lock:
1. Security Designs
Parking lock using plate bucklearranged fixed screws, in addition to the user can be opened by a key, otherswill not be able to remove parking lock;
The outside can not see themounting screw, so as to play the role of anti-theft and aesthetic effect
2. Hermetic Design
The cabinet is tightlyclosed, so it can protect the control pane and motor. It can be used in anyenvironment, even in rain and snow
3. Low –Noise Solution
In order to reduce friction,improve product stability, parking lock using bearing transmission, bearingtransmission design of the motor makes almost zero noise. It is beneficial forbattery and motor longevity and lesser friction.
4. Anti-Disconnecting Design
The power connection is anti-disconnectingdesign in case that the user misplaces the battery causing short circuit.
5. Photoelectric switch
Intelligent circuit,it will improve the work stability of the parking lock, especially when youoperate your parking lock, you will find the unique feature compare with othersupplier.
6. Charge Reminder
When the accumulatordischarges to some extent, the internal reminder warns the subscriber torecharge the battery cell.
7. Auto-Reset
Theexternal force could not change the away arm position when it is vertical; whenthe sway arm is forced to a horizontal position, it will reposition vertically,unless the user uses remote control to put it horizontally.
8. Anti-Collision Design
180°rotation angle can make it safewhen car hit,
Protect your car, protect yourparking lock
9. WaterproofDesign
General waterproof design, 24 hours is ok under a meter of water.
10. Easy Installation
Just a bit by a plate buckleplaying four holes, install the expansion screw fixing plate buckle, fourprepared holes at the bottom of the cabinet makes it easy to install, you needjust a wrench.
11. Dark Indicator
In dark both ends ofthe berth shine red Reflective stripe to remind the passersby to avoid, thuspreventing accidents.
12. Feasibility
Suitable for all parkingplace and all kinds of car
13. Application
Parking lot/Office buildings/Shopping centers /Residence Condominiums/ Hospitals/Airports/Stores/ etc.
More photos:
Specifications of car parking lock:
| Model | SN-BW-9 |
| power voltage | DC6V 7AH |
| Input voltage(V) | DC6V AC110/220V |
| working power | DC6V |
| Quiescent current(mA) | ≤0.85Ah |
| Material | steel and aluminum |
| Size(Up) | 500×470×470mm |
| Up height | 470mm |
| Down height | 60mm |
| Up and down time | 5-6s |
| Remote control distance | ≤50m |
| Working temperature | -30 ~ +65 |
| Lead Acid Battery charging time | 8 hours |
| Working time after battery charging | 3 months |
| Waterproof | Incomplete waterproof |
| N/W | 7.6Kgs |
| Packing | 510*500*100mm |
