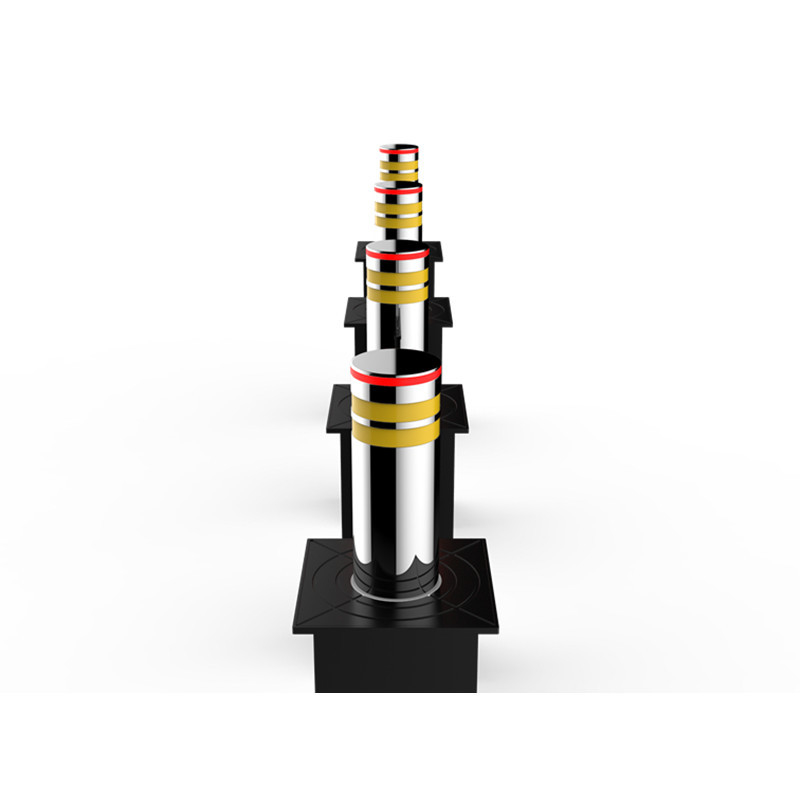

K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time

K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time

    • K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time
    • K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time
    • K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time
    • K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time
  • K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-HRB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, credit card/Cash/wechat
    Supply Ability: 1000 pcs a month
    Contact Now
    Detailed Product Description
    Material: SS304 Diameter: 273mm
    Height: 600mm Thickness: 12mm
    Up Time: 3s To 6s Adjustable Down Time: 3s To 6s Adjustable
    Min. Loading: 80T Weight: 150KG±

    Features:


    1. System:electric-hydraulic system
    2. Max passing pressure: 100T trucks
    3. Voltage:AC220V 50Hz Integrated
    4. Power(w):300W Integrated
    5. Up time:3-6SAdjustable
    6. Down time:3-6SAdjustable
    7. Working temperature:-65℃~75℃
    8. Storage Environment:-10℃~65℃, water-proof, damp-proof,dust-proof.
    9. Material:304 stainless steel
    10. Rising height:600mm
    11. Bollard Thickness: 12mm
    12. Diameter:273mm
    13. Structure : With load-bearing steel beam column, anti-collision steel beam
    column, 4 navigation rod.
    14. Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm,
    Rod diameter:16mm.
    15. 6k Mirror tube
    16. Reflective sticker: 2 strips
    17. Link-control interface
    18. In case of a power outage, the bollards can be manually lowered down
    19. IP rate: IP68
    20. Weight:150±KG Integrated
    21. In rising and falling,reversible operation is available
    22. Device running noise≤60decibel
    23. Waterproof integrated hydraulic device drive
    24. The hydraulic cylinder is double sealed to ensure a waterproof rating
    25. Hydraulic drive comes with hydraulic lock
    26. PLC programming command control system
    27. Solenoid valve voltage 24V
    28. Remote control distance 50M-100M(Based on the environment)
    29. The control box displays text adjustable (Up, Down, Action, Time control
    adjustment)
    30. Text display with Chinese and English bilingual
    31. PLC built-in encryption system
    32. Water immersion performance:48 hours without leakage and working well



    PRODUCT REFERENCE:

    K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time

    K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time



    Case reference

    K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time







    Installation site



    K12 Tested Hydraulic Automatic Rising Bollards SS304 Material 3s To 6s Adjustable Time
