Vehicle Detector Sensor
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | PD-132 |

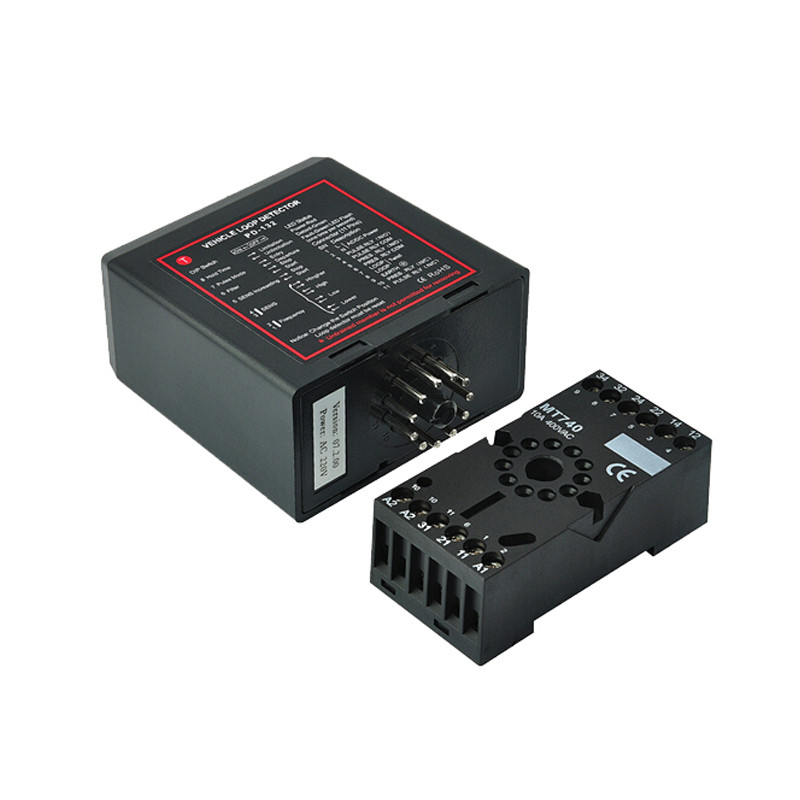

Vehicle Detector Loop Detector To Sense Vehicle Inspection Device Traffic Inductive Signal Control PD132
Main Features:
1) Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing . This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection ;
2) Selectable Pulse Time : This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds ;
3) Pulse Relay Selection : The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop ;
4) Sensitivity Boost : This feature sets the undetect level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles ;
5) Switch Selectable Sensibility : 4 sensitivity setting are available on the switches to allow flexibility in configuration ;
6) Switch Selectable Frequency : 4 frequency settings are available to prevent cross-talk between adjacent loops ;
7) Filter Option : This option is used to provide a delay between detection of the vehicle and switchiing of the output relay . This relay is normally used to prevent false detection of small or fast moving objects ;
8) Permanent Presence Option : This feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods .
Technical parameters of Loop Detector
|
Supply voltage
|
230V AC , 115V AC,24VDC/AC,12V DC/AC |
|
Voltage tolerance AC
|
+10% / -15%
|
|
Voltage tolerance DC
|
±15%
|
|
Power Consumption
|
4.5VA
|
|
Output relays
|
240V/5A
|
|
Operating temperature
|
-20°C to +65°C
|
|
Storage temperature
|
-40°C to +85°C
|
|
Frequency range
|
20 kHz to 170 kHz
|
|
Reaction time
|
100ms
|
|
Signal holding time
|
Unlimited
|
|
Sensitivity
|
Adjustable in 3 increments
|
|
Loop inductance
|
Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
|
|
Loop connection wiring
|
Maximum length 20 meters, twisted at least 20 times per meter
|
|
Size of Housing
|
78x40x108 mm (L x W x H)
|
