Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System

Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System

    • Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System
    • Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System
    • Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System
    • Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System
    • Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System
  • Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: PD-132

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 2-5 working days after payment received
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3,0000pcs per month
    Contact Now
    Detailed Product Description
    Frequency Range: 20 KHz To 170 KHz Reaction Time: 100ms
    Output Relays: 240V/5A Warranty: 1 Year
    Voltage Available: 220V, 110V, 24V, 12V Loop Connection Wiring: Maximum Length 200 Meters Twisted At Least 20 Times Per Meter
    Operating Temperature: -20°C To +65°C

    Relay Output vehicle access control system Single vehicle inductive loop presence detector



    About loop detectors

    Loop detectors are used wherever vehicles have to be detected, for example: monitoring and safe guarding access ways or counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.
    SINOMATIC loop detector with direction detecting function that can be used to statistics the vehicle flux. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.



    Technical Data
    Power Consumption: 4.5VA
    Output relays: 240V/5A
    Operating temperature: -20°C to +65°C
    Storage temperature: -40°C to +85°C
    Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
    Sensitivity: Adjustable in 4 increments
    Loop inductance: Total loop plus connection wiring: 50μH to 1000μH(Ideal is 100μH to 300μH)
    Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter



    Main Features:



    1) Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing . This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection ;

    2) Selectable Pulse Time : This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds ;

    3) Pulse Relay Selection : The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop ;

    4) Sensitivity Boost : This feature sets the undetect level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles ;

    5) Switch Selectable Sensibility : 4 sensitivity setting are available on the switches to allow flexibility in configuration ;

    6) Switch Selectable Frequency : 4 frequency settings are available to prevent cross-talk between adjacent loops ;

    7) Filter Option : This option is used to provide a delay between detection of the vehicle and switchiing of the output relay . This relay is normally used to prevent false detection of small or fast moving objects ;

    8) Permanent Presence Option : This feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods .



    Detail image

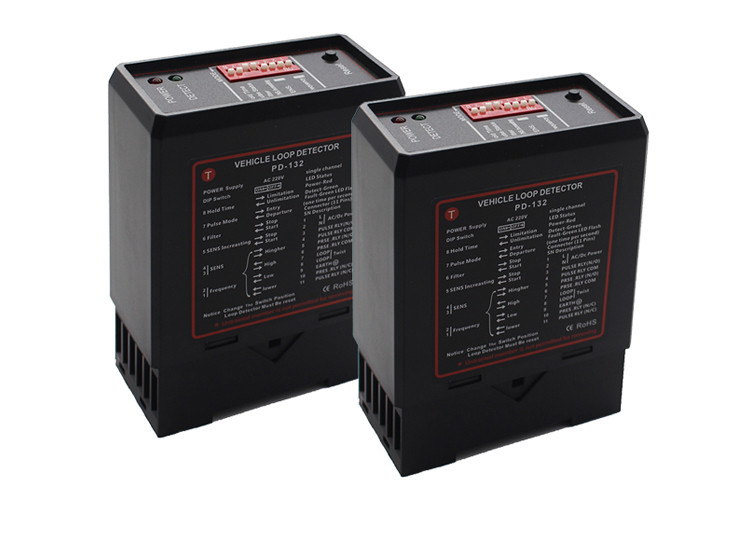

    Single Inductive Loop Presence Detector Relay Output Vehicle Access Control System



    Technical parameters of Loop Detector



    Power supply 230V AC 115V AC 24V DC/AC 12V DC/AC
    Frequency range 20KHz ~ 170KHz
    Sensitivity Adjustable in 4 increments
    Reaction time 10ms
    Channel Single
    Operating temperature -40ºC ~ +80º
    Relative humidity <90%
    Environmental compensation Automatic drift compensation
    Output mode electric relay
    Loop inductance Ideal is 100μH to 300μH(Connection included)
    Size of Housing 78x40x108 mm (L x W x H)
